22.05.2025 - the new assembly for the 47088 MHz band consists of:

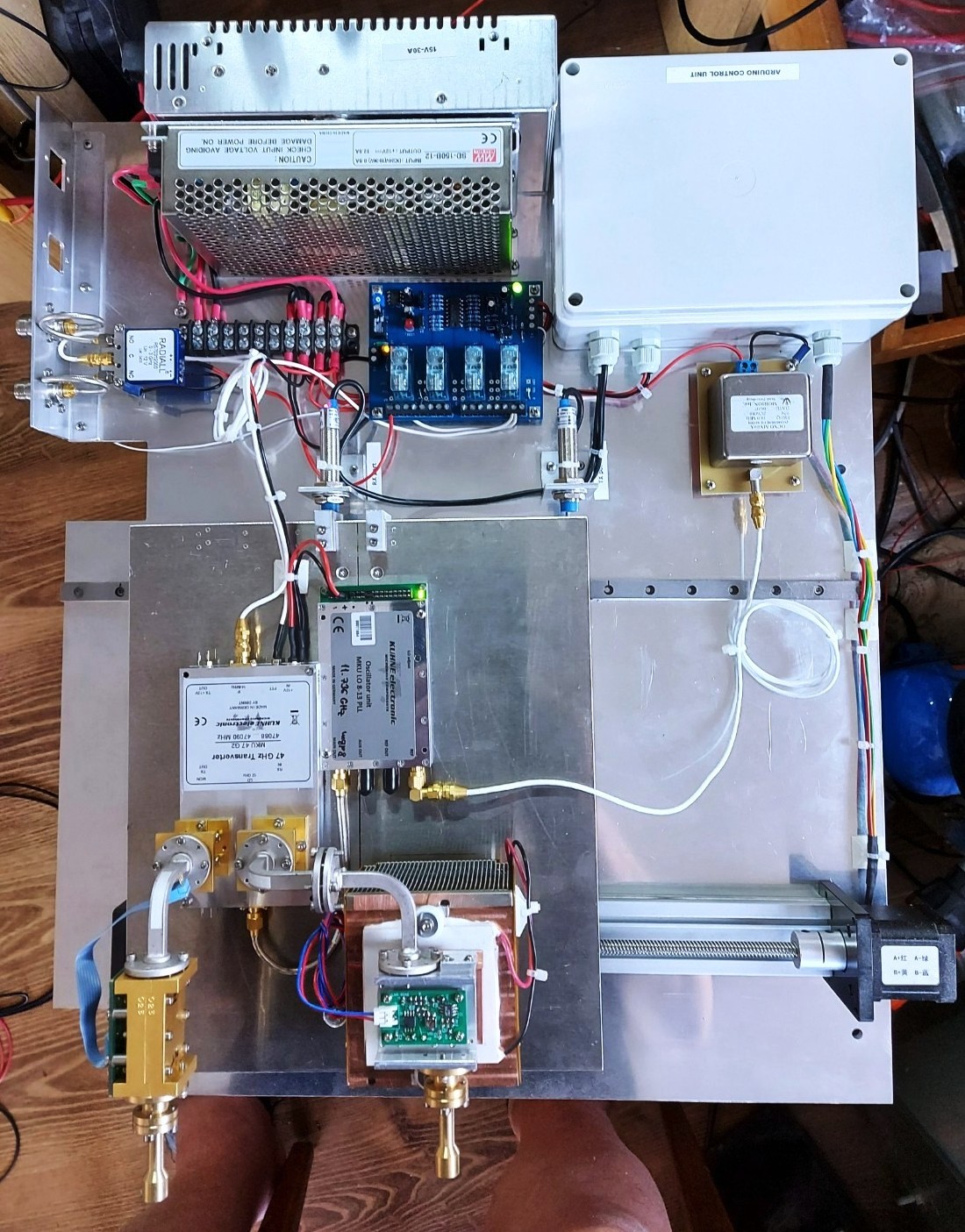

TRV v2.0 and IC9700 - Leo Bodnar GPS locked - DB6NT TRV GPS locked, USB III Microham interface

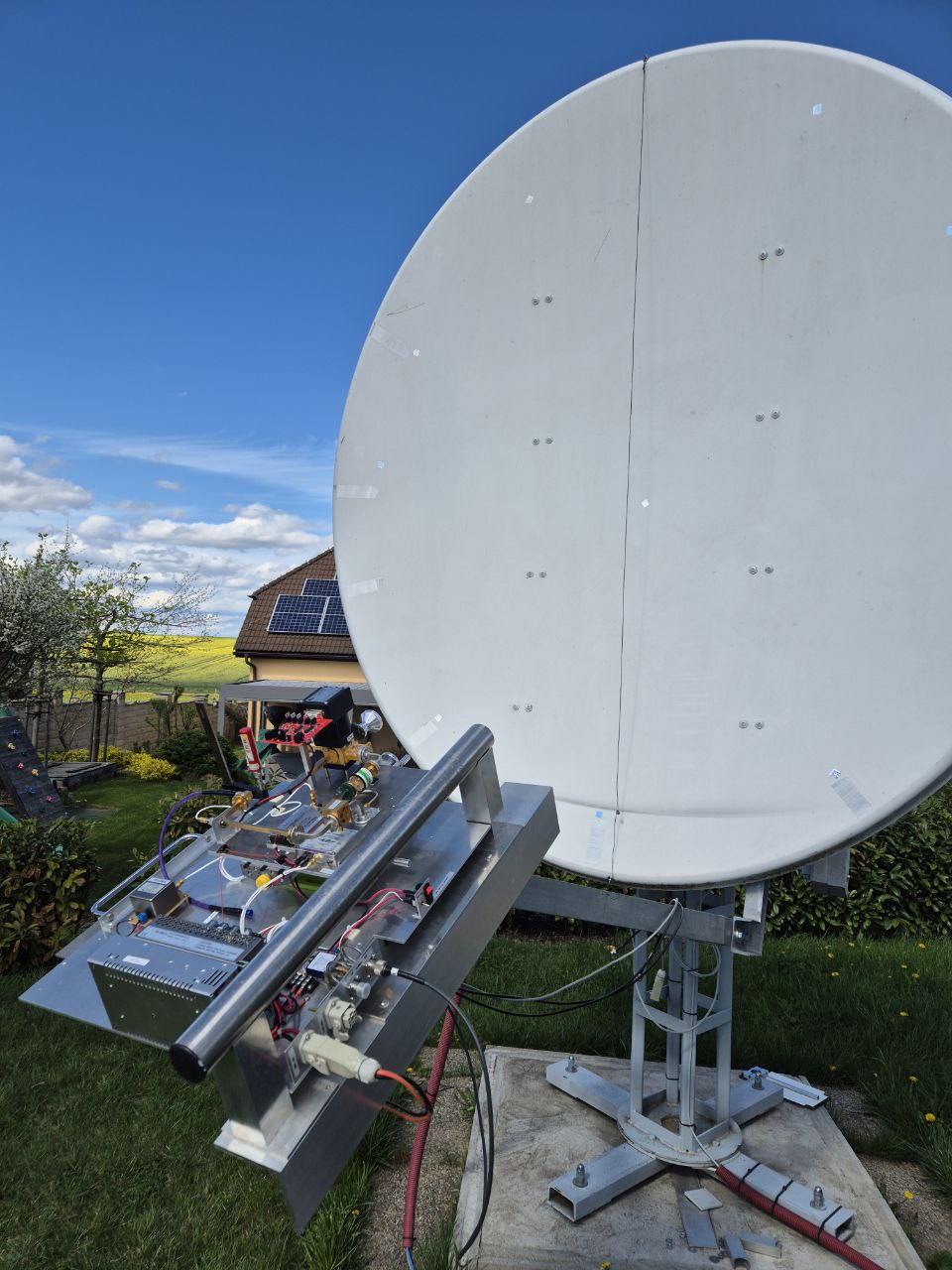

2,4m solid dish - CT1DMK feedhorn - SSPA (soon)

 VLNA - 1,8dB N/F EB3FRN - 22dB gain

Test and measurement equipment for the 47 GHz band

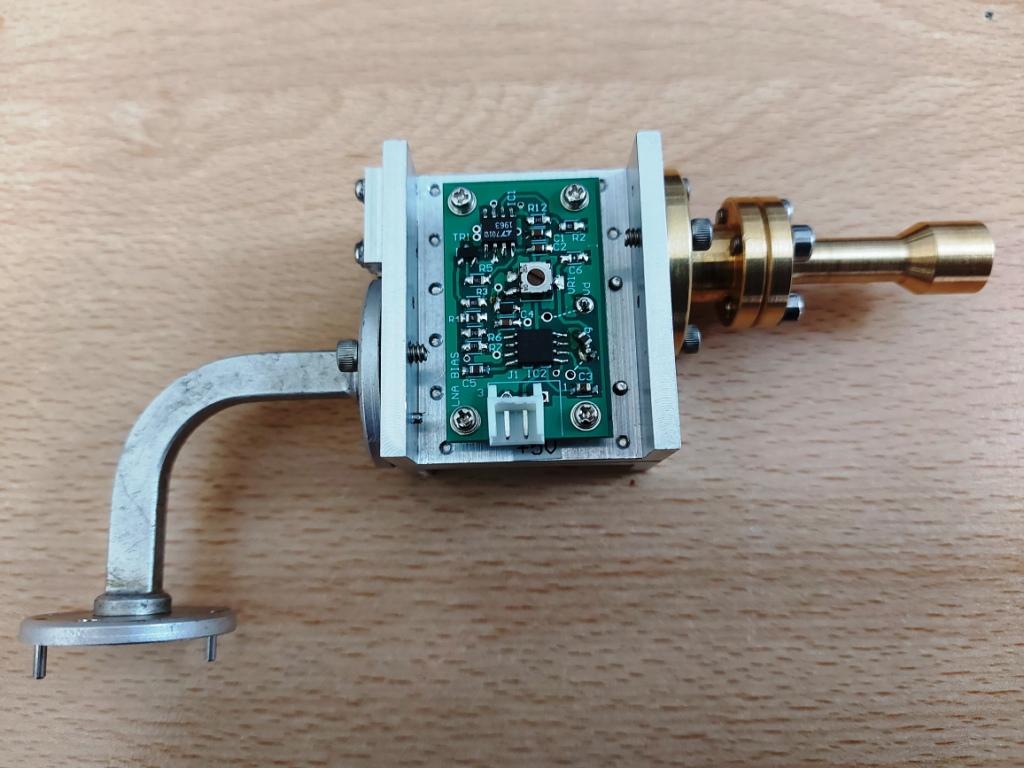

New WR22 switch and LNA EB3FRN

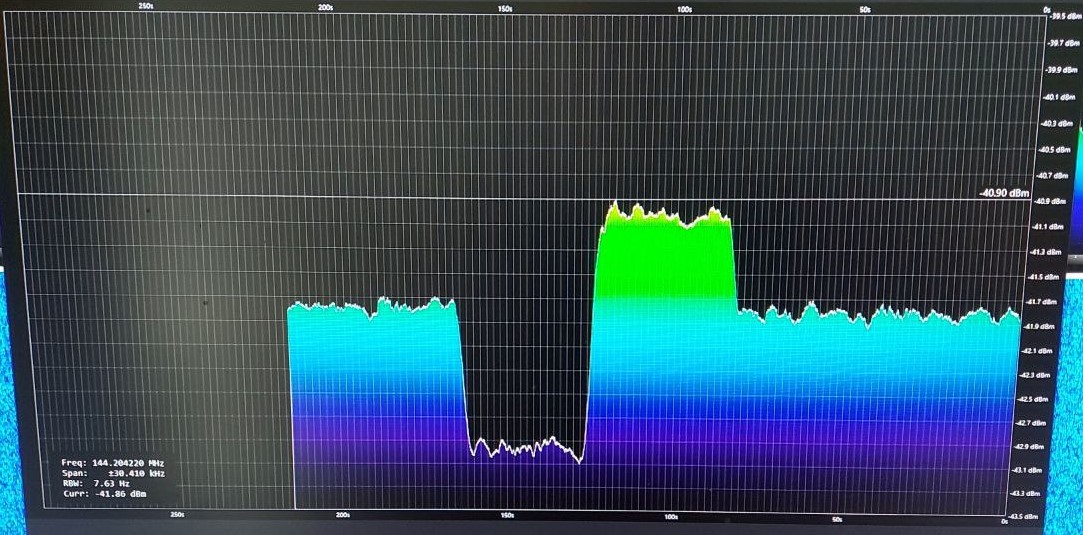

3rd RX performance test - new feedhorn CT1DMK 22/04/2025

2nd RX performance test - RX performance 9,8 dB Sunnoise and 1,2dB Moon noise 10/05/2024

1st RX performance test - Prodelin offset dish - 13/07/2020

2,4m Channel master dish and TRV 47 GHz

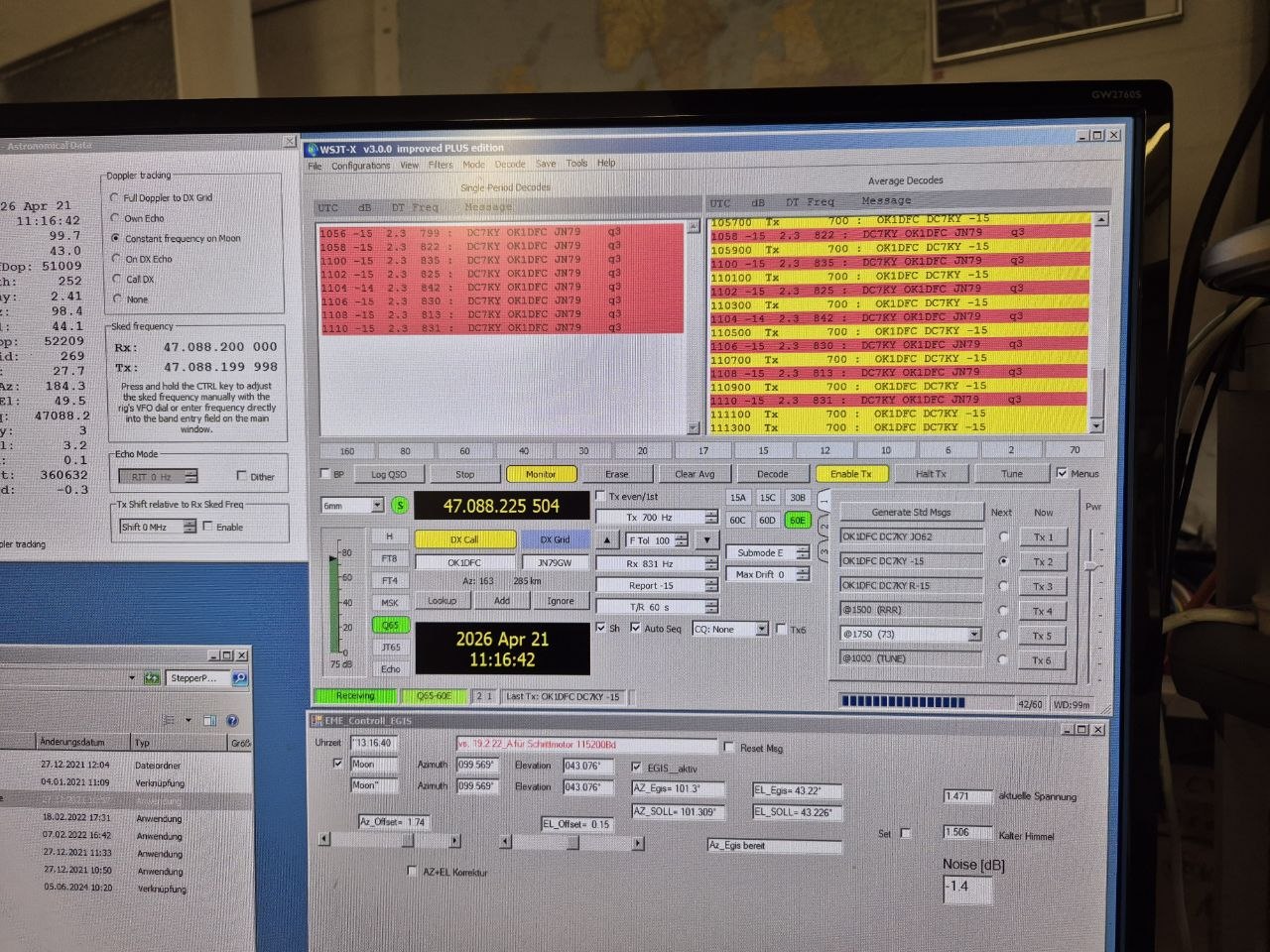

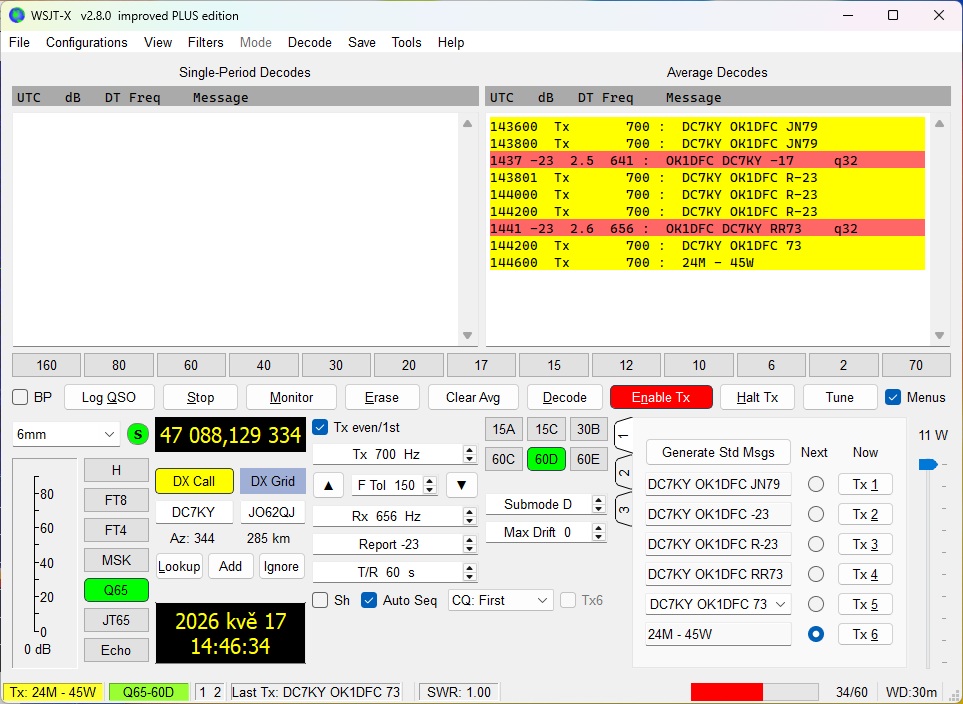

First test of EME decoding 47 GHz with DL7YC

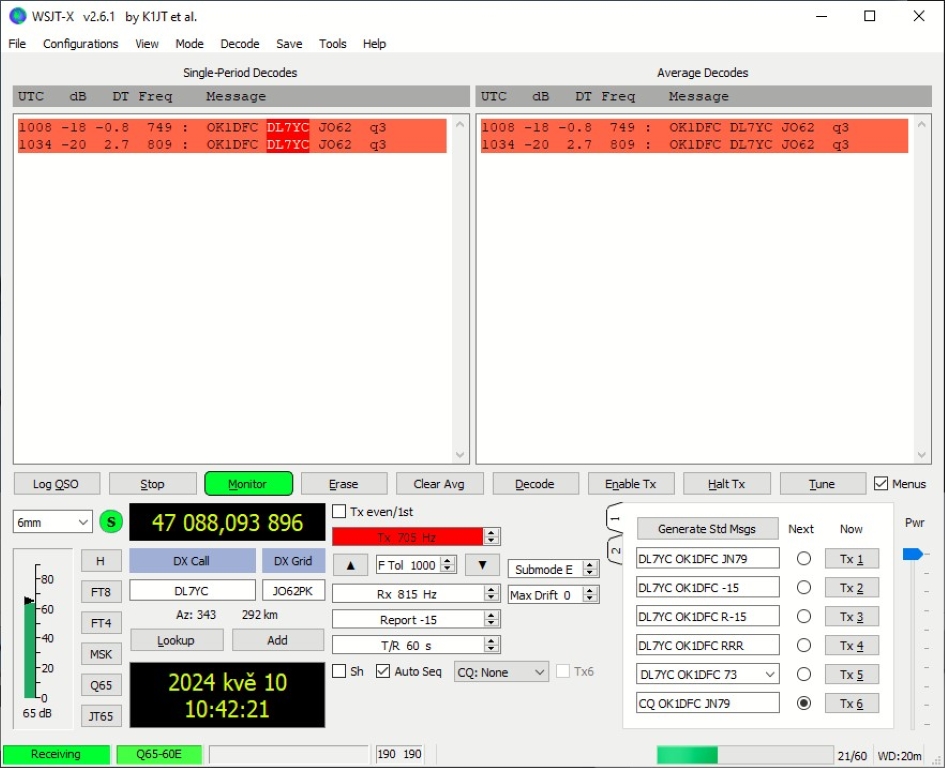

DL7YC decoded in EME test on 47 GHz 10th of May 2024

RX performance test W2IMU feed

Test SKY 90°el. zenith and GND - 2,2dB noise

TRV v1.0 IC9100 GPS locked - DB6NT - MVDS SSPA 120mW RF

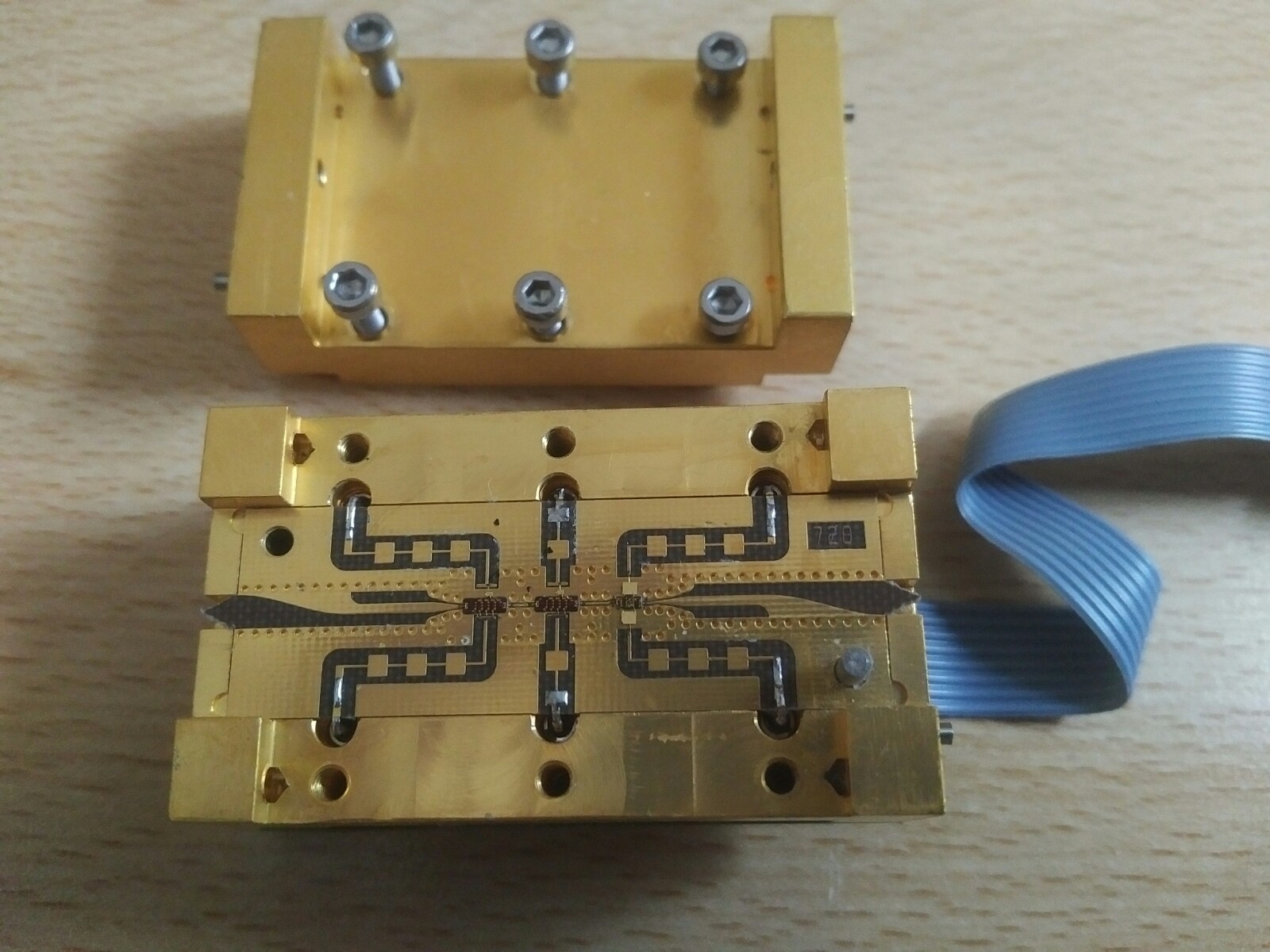

SSPA driver 1W

 VLNA - 2,45dB N/F - 24dB gain - JA8CMY design

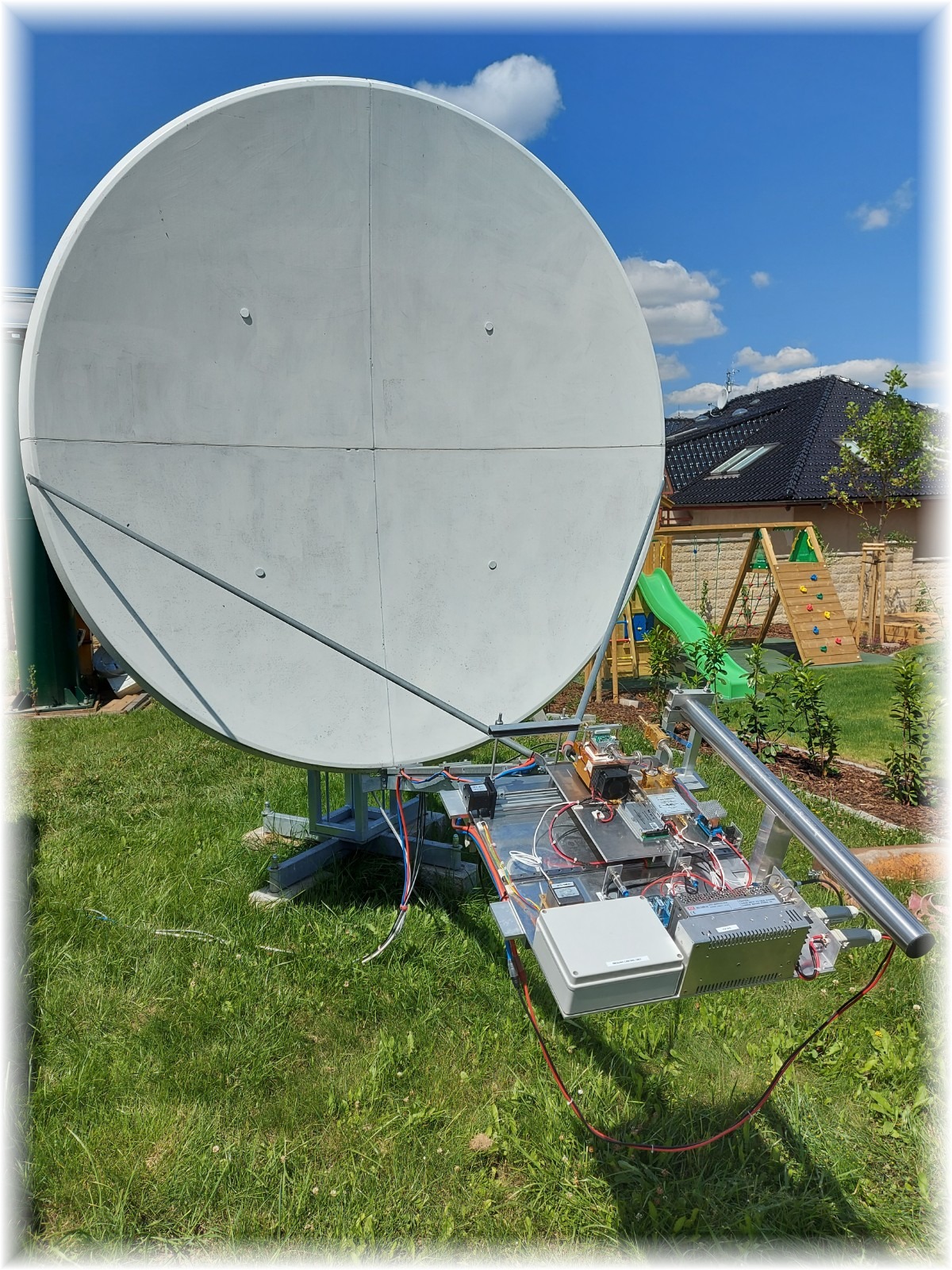

Fiberglass dish Prodelin 2,4m

Beginning of build and first test 02/2020

RX performance of home QTH system with 2,4m Prodelin offset solid dish

SN/CS = 7,7dB     MN/CS = 0,77dB

New offset dish Channelmaster 2,4m for 10 - 24 - 47 - 76 GHz EME

Feeds for 47 GHz in 2,4m offset dish

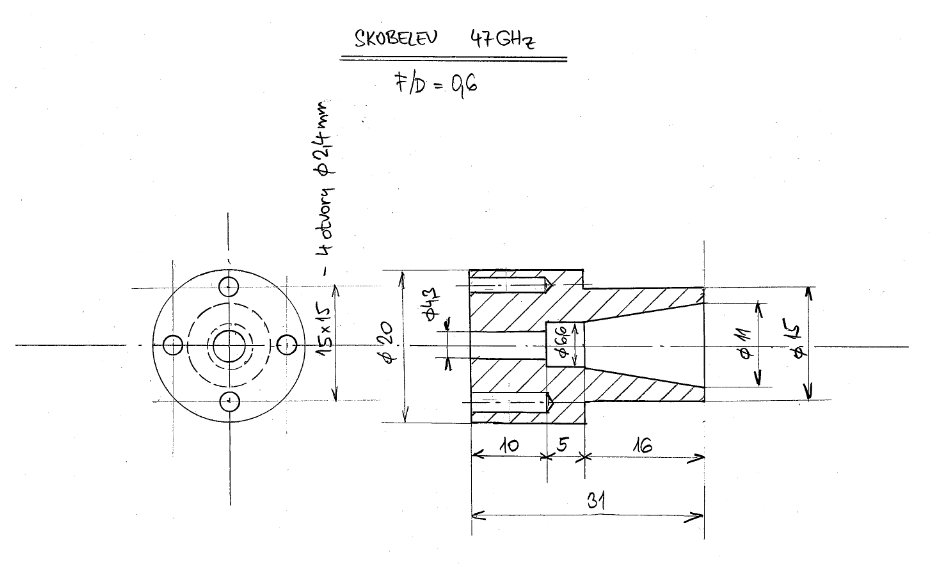

Complicated process of producing feed horn W2IMU for F/D 0,8 Right now scaled W2IMU feed and working on two of them for testing.

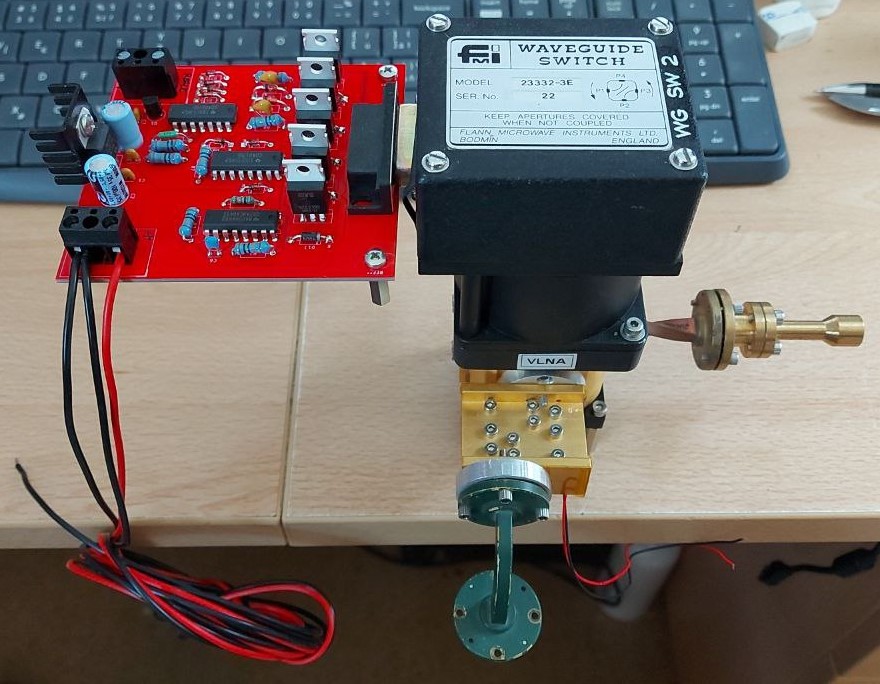

RX/TX switch

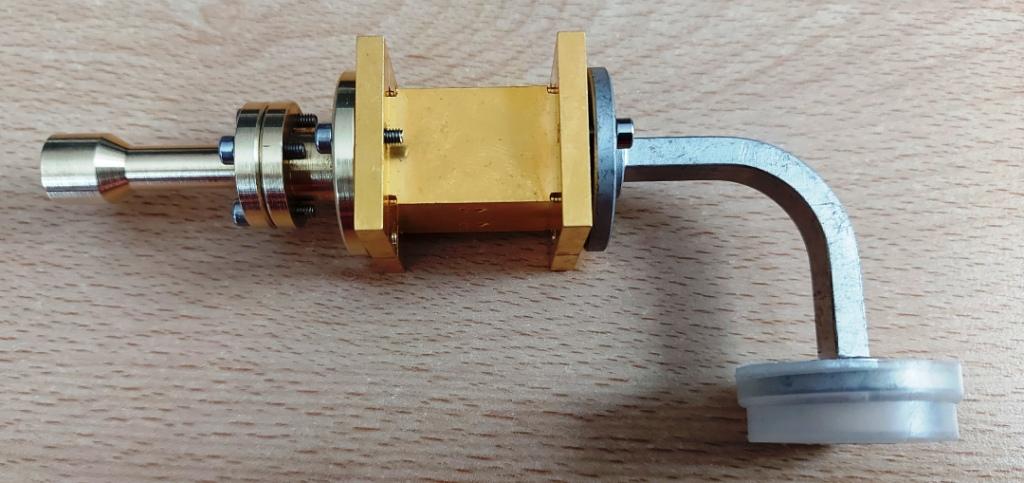

will publish here all details soon. Wave guide made by Pasternak MW cost 10.000 $ and have almost 0,5dB ATT with associated waveguides etc.. I have 200 $ solution and 0dB ATT.

Offset dish 2,4m PRODELIN for 10 - 24 - 47 GHz

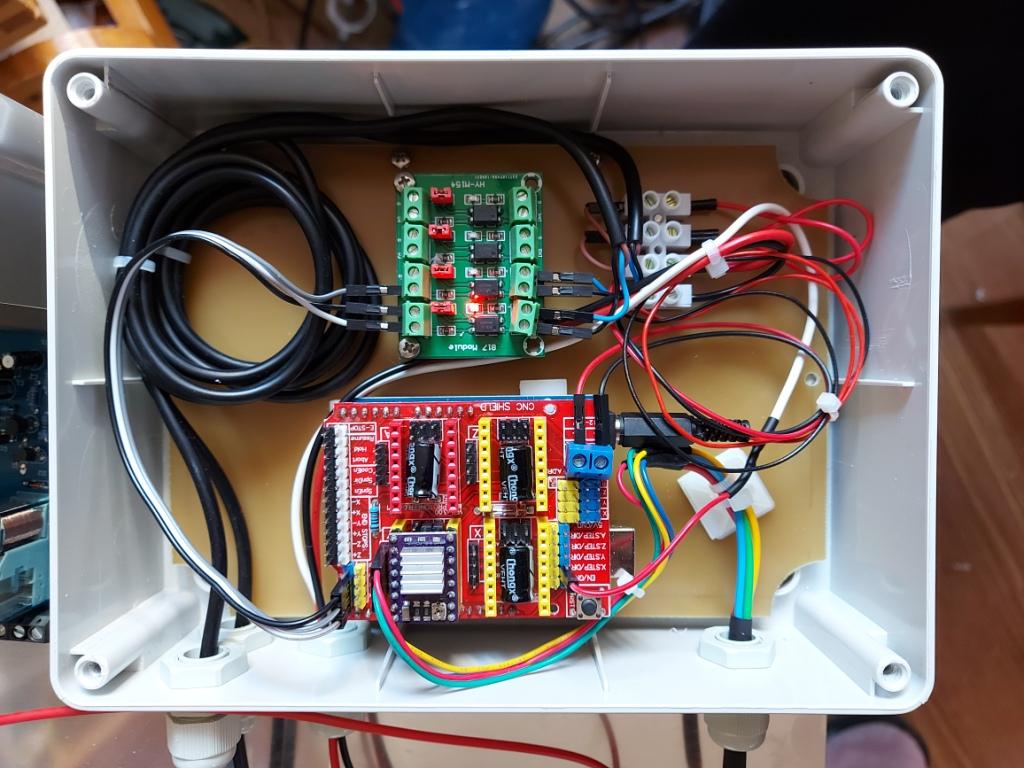

PDF presentation of tracking gears

List of active stations 47 GHz courtesy of PA0EHG

My first steps on 47 GHz presentation from EME&MW seminar 2021
