3,4 GHz EME activity

  Page navigation:


















last update - 23.09.2024

3,4 GHz - setup - NEW 2015

 TRX:  IC 9100 + TRV DB6NT + PLL LO

Final SSPA PA: 50W max. out

VLNA: DB6NT - 0,4dB N/F - 25dB gain

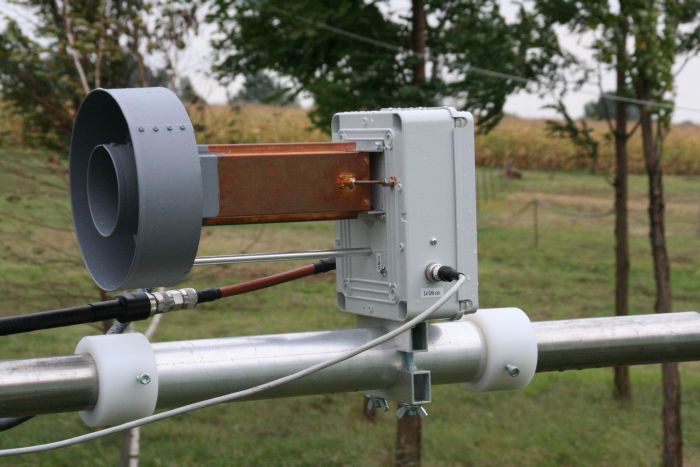

Feed horn: Design OK1DFC septum polarize feed with Chaparral ring on portable setup and W2IMU flare for offset dish 0,6 F/D

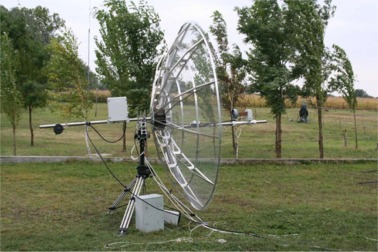

Antenna: Offset dish 2,4m and 3,2m portable, design by OK1DFC



RX performance: Sun noise 11,8 dB/CS and Moon noise 0,22 dB/CS

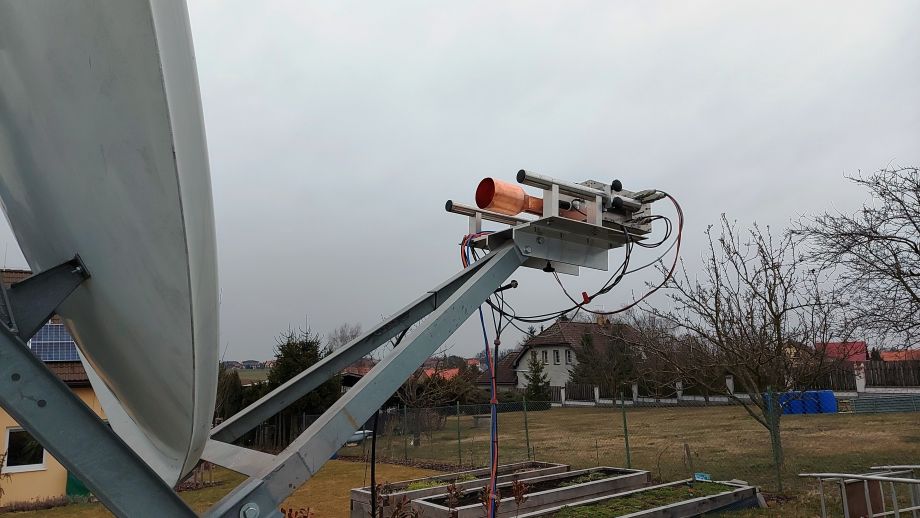

New septum feed with W2IMU flare F/D 0,6 - dish offset 240cm - 03/2021

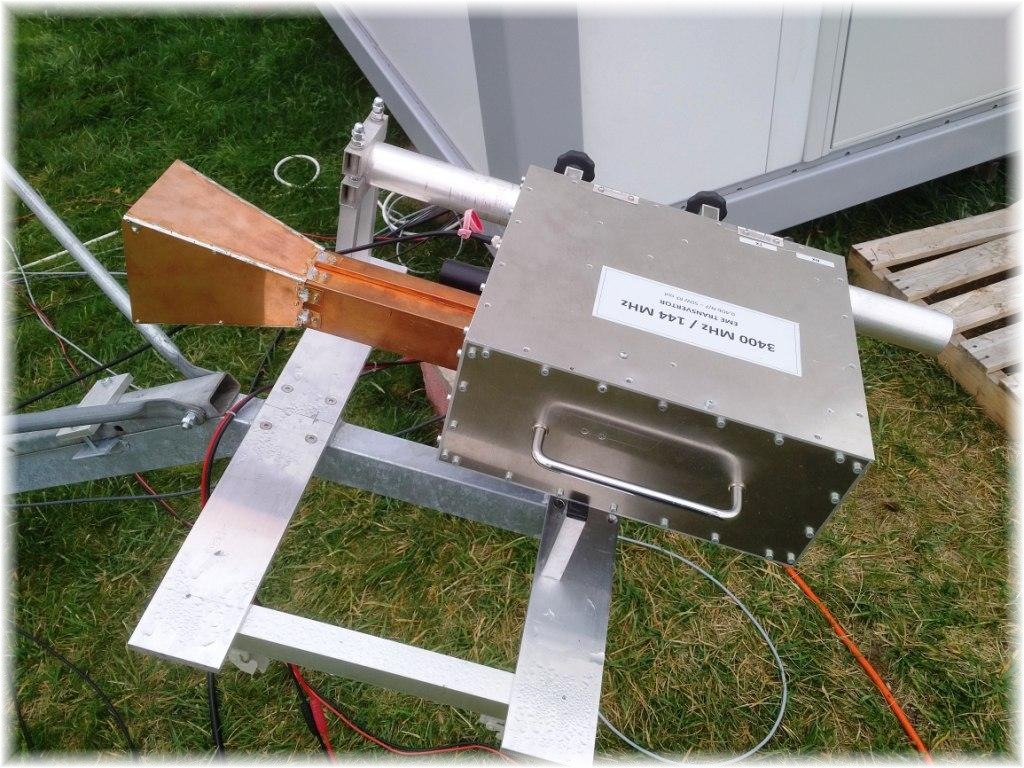

Septum feed with horn inside of dish 2,4m offset 0,8 F/D 09/2019 - 09/2020



3,4 GHz - setup - previous setup

 TRX:  FT847 + TRV DB6NT

Final SSPA PA: TOSHIBA 45W max. out

VLNA: G4DDK - ATF36077 - ATF54143 - 0,55dB N/F - 25dB gain

Feed horn: Design OK1DFC septum polarize feed modified RA3AQ

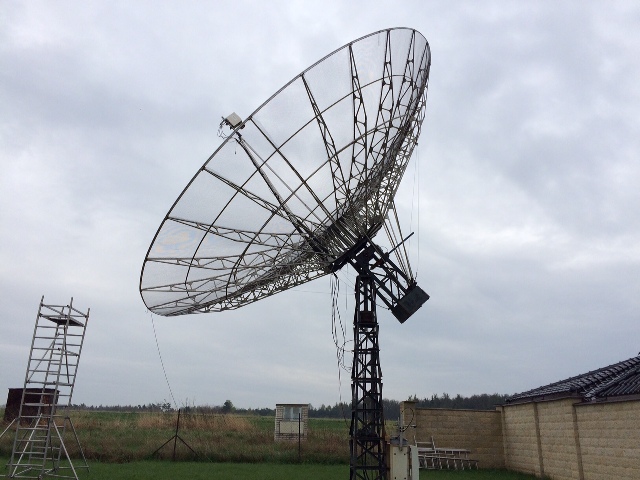

Antenna: Home made dish 10m and 3,2m portable, design by OK1DFC



3,4 GHz EME traffic W.W.



EME Unit of OK1DFC 3,4 GHz

New EME setup 3,4 GHz OK1DFC



VK3NX 3,4 GHz EME set up

The Revival of 9cm EME by G3LTF

G3LTF - 3400 MHz EME developments

3,4 GHz allocations

G4NNS - 3,4 GHz EME

OK1KIR - 3,4 GHz EME





Locators:

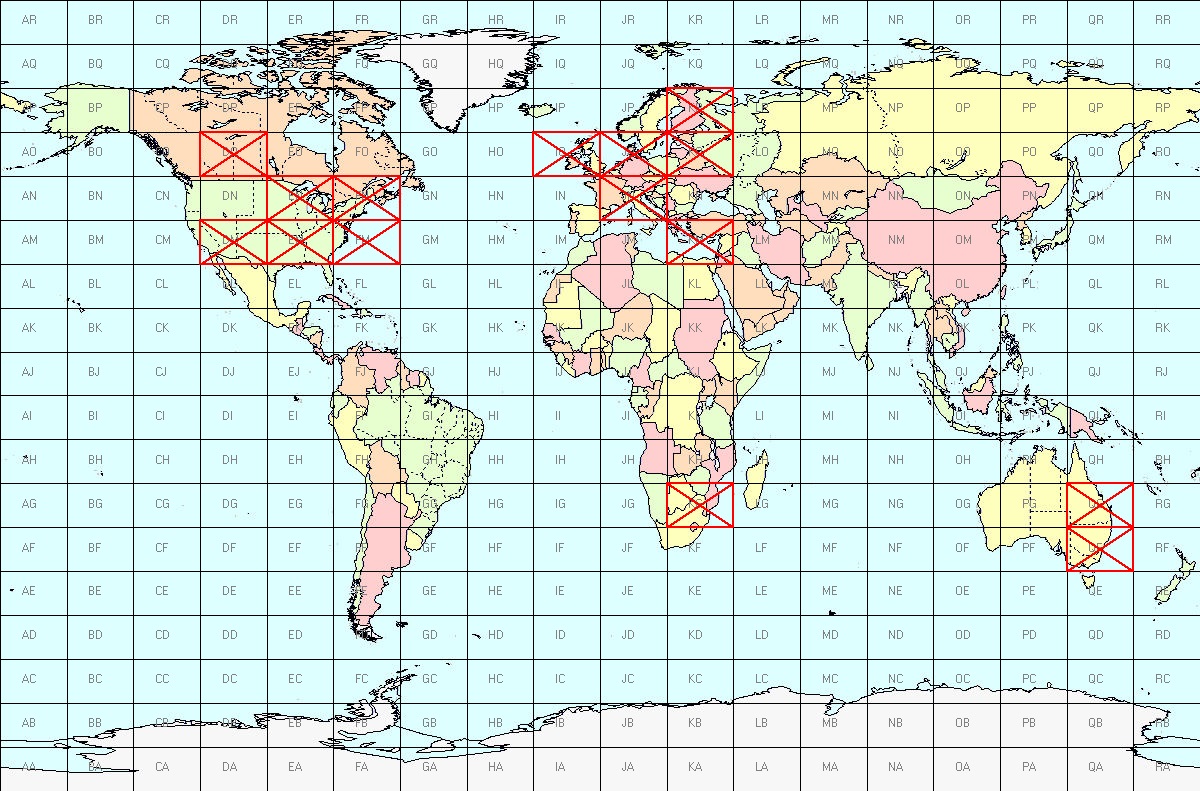

Quick summary of squares worked by OK1DFC on 9 cm.


Total: 15 Fields at 23.09.2024



DXCC



1 OM Slovakia   2 E7 Bosnia&Herzegovina   3 OK Czech republic
4 G England   5 OH Finland   6 W USA
7 LX Luxembourg   8 SP Poland   9 DL Germany
10 VK Australia   11 PA Netherlands   12 ES Estonia
13 OZ Denmark   14 SM Sweden   15 S5 Slovenia
16 HB9 Switzerland   17 A21 Botswana   18 4U1 ITU Geneva
19 PY Brazil   20 OE Austria   21 VE Canada
22       23       24
25       26       27
28       29       30
Total:21 DXCC at 23.09.2024

WAC: CW mode

References worked for the WAC 3400 award by OK1DFC on 9 cm.
DATA OF FIRST QSO

AFRICA A21EME 24/10/2019
ASIA
AUSTRALIA VK3NX 22/09/2008
EUROPE OK1KIR 22/09/2008
N. AMERICA W5LUA 09/10/2015
S. AMERICA

CW - WAC accomplished at xx

WAC: JT mode

References worked for the WAC 3400 award by OK1DFC on 9 cm.
DATA OF FIRST QSO

AFRICA A21EME 24/10/2019
ASIA
AUSTRALIA VK4CDI 17/04/2016
EUROPE OK1KIR 22/09/2008
N. AMERICA W5LUA 09/10/2015
S. AMERICA PY2SB 26/08/2017

CW - WAC accomplished at xx



 WAS:

References worked for the WAS 3,4 GHz award by OK1DFC on 3,4 GHz.

DATA OF FIRST QSO



ALABAMA
  ALASKA
  ARIZONA
  ARKANSAS
  CALIFORNIA
  COLORADO
  CONNECTICUT
  DELAWARE
  FLORIDA
  GEORGIA
  HAWAII
  IDAHO
  ILLINOIS
  INDIANA
  IOWA
  KANSAS
  KENTUCKY
  LOUISIANA
  MAINE
MD MARYLAND (D.C.) KD3UY 23/10/2019 08:44 QSL
  MASSACHUSETTS
  MICHIGAN
MN MINNESOTA KN0WS 08/03/2020 00:18 QSL
  MISSISSIPPI
MISSOURI
MONTANA
NEBRASKA
NEVADA
NEW HAMPSHIRE
  NEW JERSEY
  NEW MEXICO
  NEW YORK
  NORTH CAROLINA
  NORTH DAKOTA
  OHIO
  OKLAHOMA
  OREGON
  PENNSYLVANIA
  RHODE ISLAND
  SOUTH CAROLINA
  SOUTH DAKOTA
TENNESSEE
TX TEXAS W5LUA 09/10/2015 11:30 QSL
  UTAH
  VERMONT
  VIRGINIA
  WASHINGTON
  WEST VIRGINIA
WI WISCONSIN WA9FWD 08/03/2020 00:49 QSL
WYOMING

Total: States - #04 WAS

Other Awards
