FOR SALE

date of last actualization

06.11.2012


Accept for pay of parts or unitsAcceptance Mark


Description: price: CZK

Number on the stock

Remarks Item ID GO to Pay

DFC 23 - NM-NM

Feed horn with N-connectors TX - female / RX - female

4200 CZK

1

1296004

Flare Extension for f/D 0,45 - 0,55 1300 CZK on request 1296009
2320 MHz

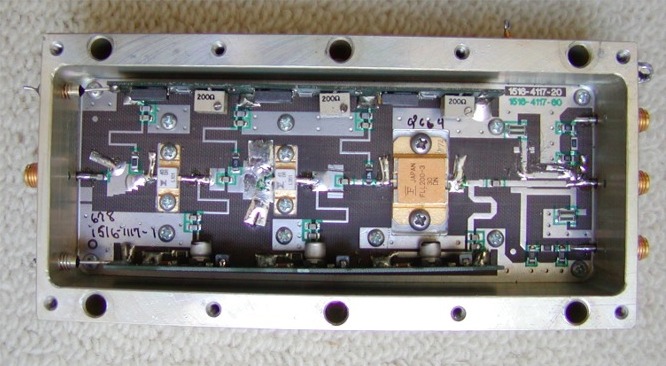

2320 MHz Power amplifier 2,3 - 2,4 GHz 30W out (10W in - 30W out) 3000 CZK 2 2320002
2320 MHz Power amplifier 2,3 - 2,4 GHz 10W out (100mW in - 10W out) 1500 CZK 2 2320003

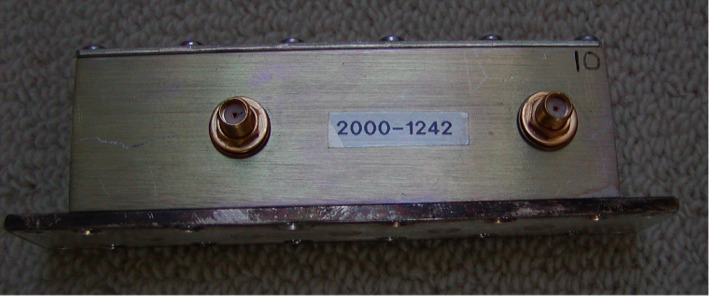

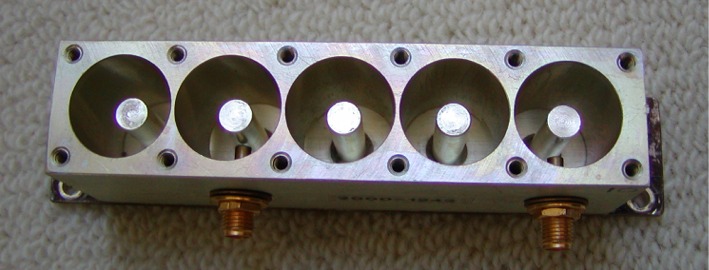

2320 MHz Filter 2,3 GHz 20MHz wide (possible setup for 2304 MHz too) Attenuation on 2320 MHz max.6dB 750 CZK 2 2320004
DFC 13 - NM-NM Feed horn with N-connectors TX - female / RX - female 3500 CZK 7 2320005

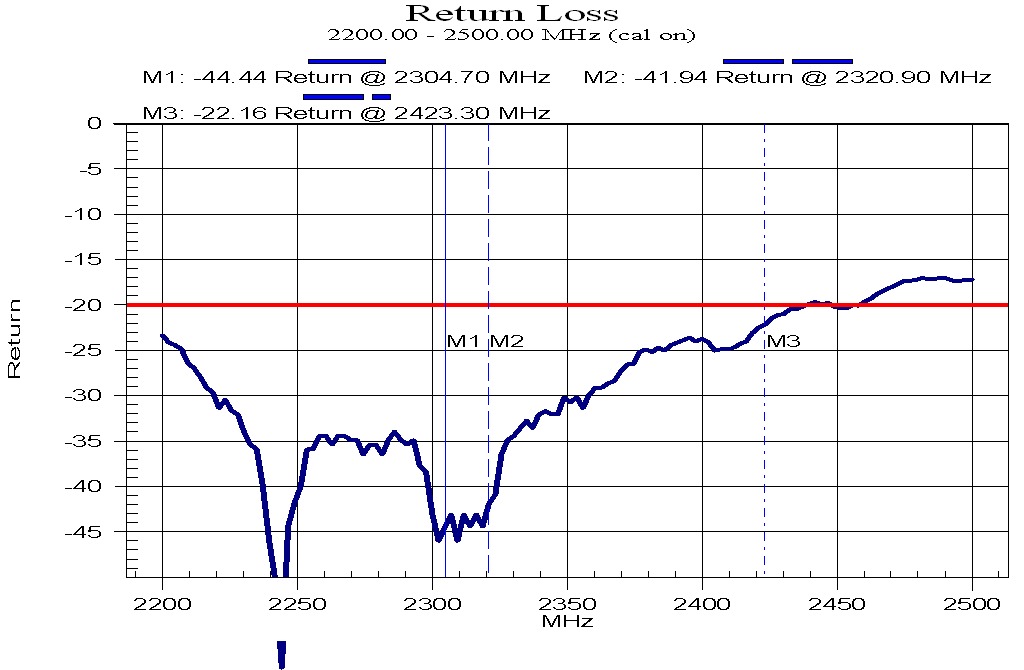

SWR diagram SITEMASTER S331A
Flare Extension for f/D 0,45 - 0,55 800 CZK on request 2320010

 Others
TCXO 101 MHz for 432MHz TRV with IF 28 MHz. In BOX with SMA on output 2000 CZK 1
Time delay relay 250V/5A - 5sec - 2minutes 450 CZK 2 0001

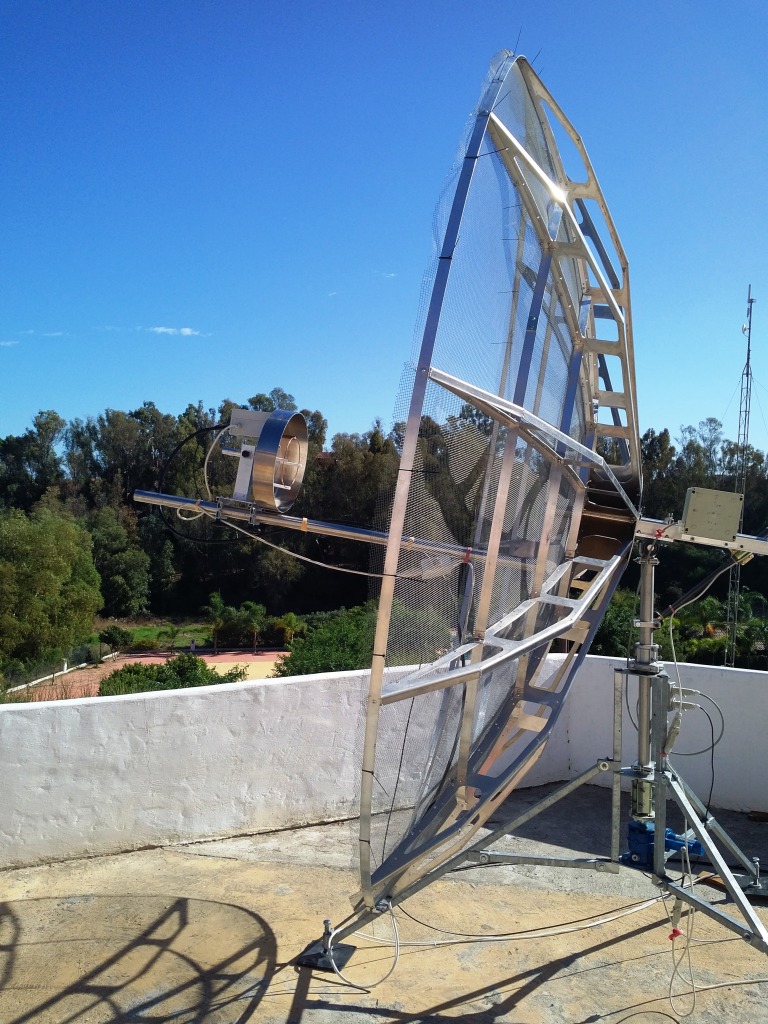

Dish 120 cm base kit no mesh   n.a.
Dish 180 cm base kit no mesh 10.000 n.a. 0003
Dish 240 cm base kit no mesh 13.000 n.a. 0004
Dish 320 cm base kit no mesh  n/a 0005
Dish 480 cm base kit no mesh  n/a 0006

Order or info about availability send here please:

   All feed horns are set up and tuned for minimum SWR in the free space. After installation in your dish, you must move with feed in axe of dish to find phase point of focus and minimum SWR. Here is instruction manual in .pdf format for 1296 MHz and 2320 MHz.


Samek Zdenek

Liben 156

CZ-25241 LIBEN - Dolni Brezany

CZECH REPUBLIC
