Septum feeds 1296 - 2320 - 3400 MHz

after optimize by RA3AQ

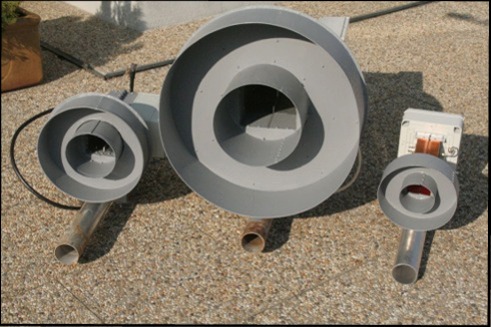

Feeds after optimize and chocks

1296 MHz

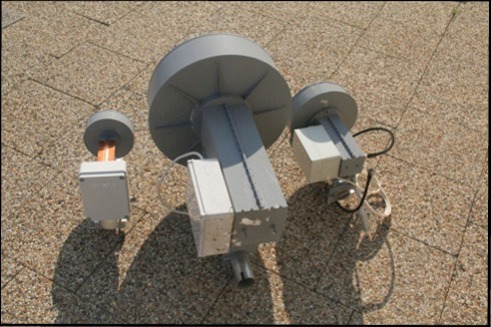

Rear sides of feeds 9cm - 23cm - 13cm

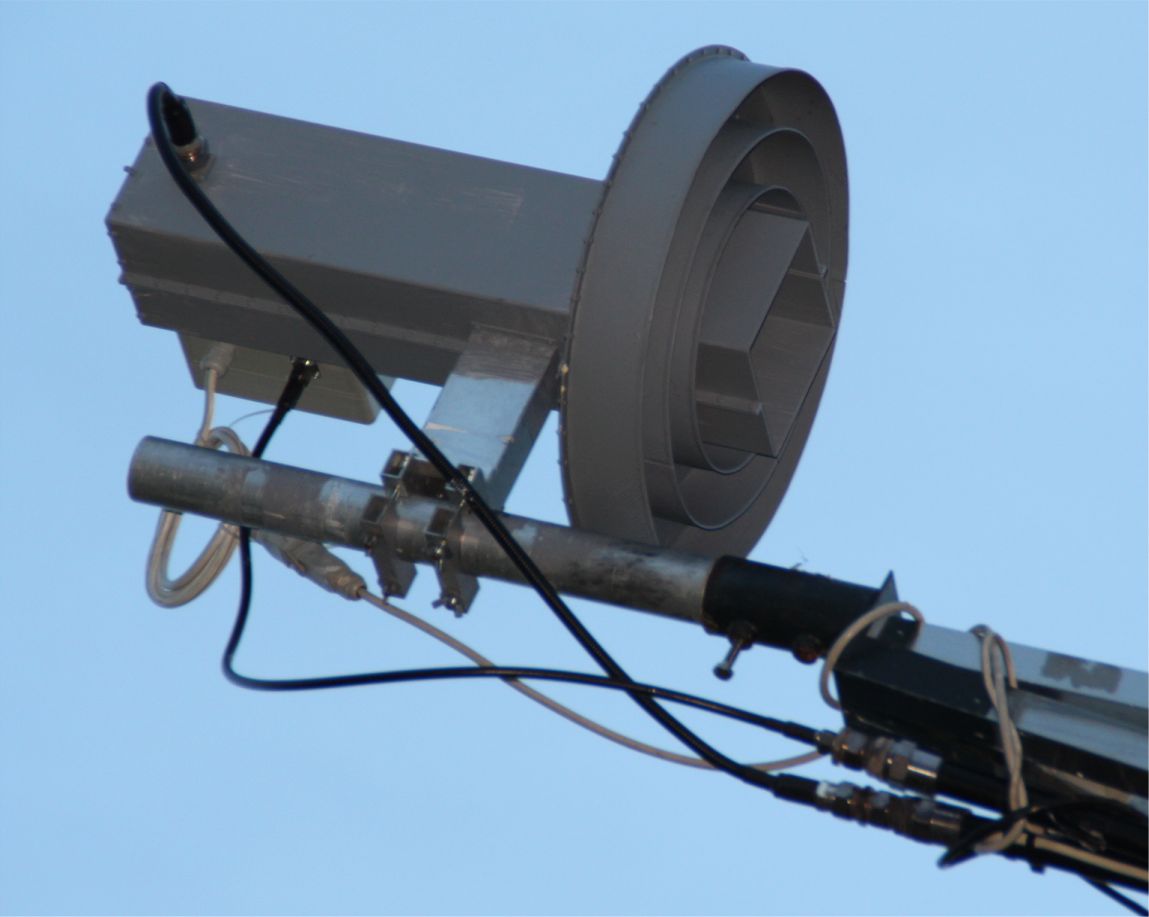

23cm square feed with Chaparral ring

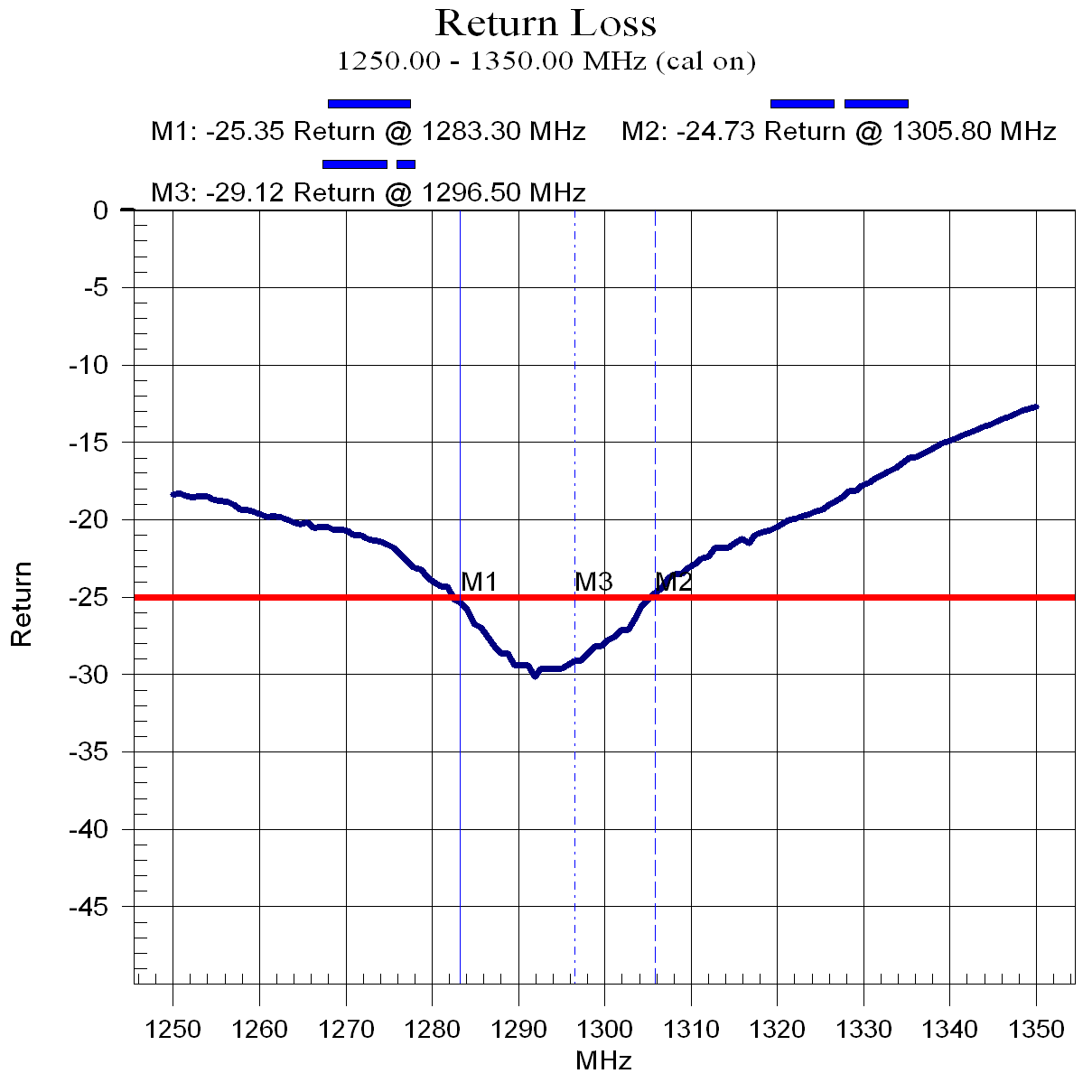

SWR diagram of 1296 MHz feed in open space

Click on picture to max. resolution

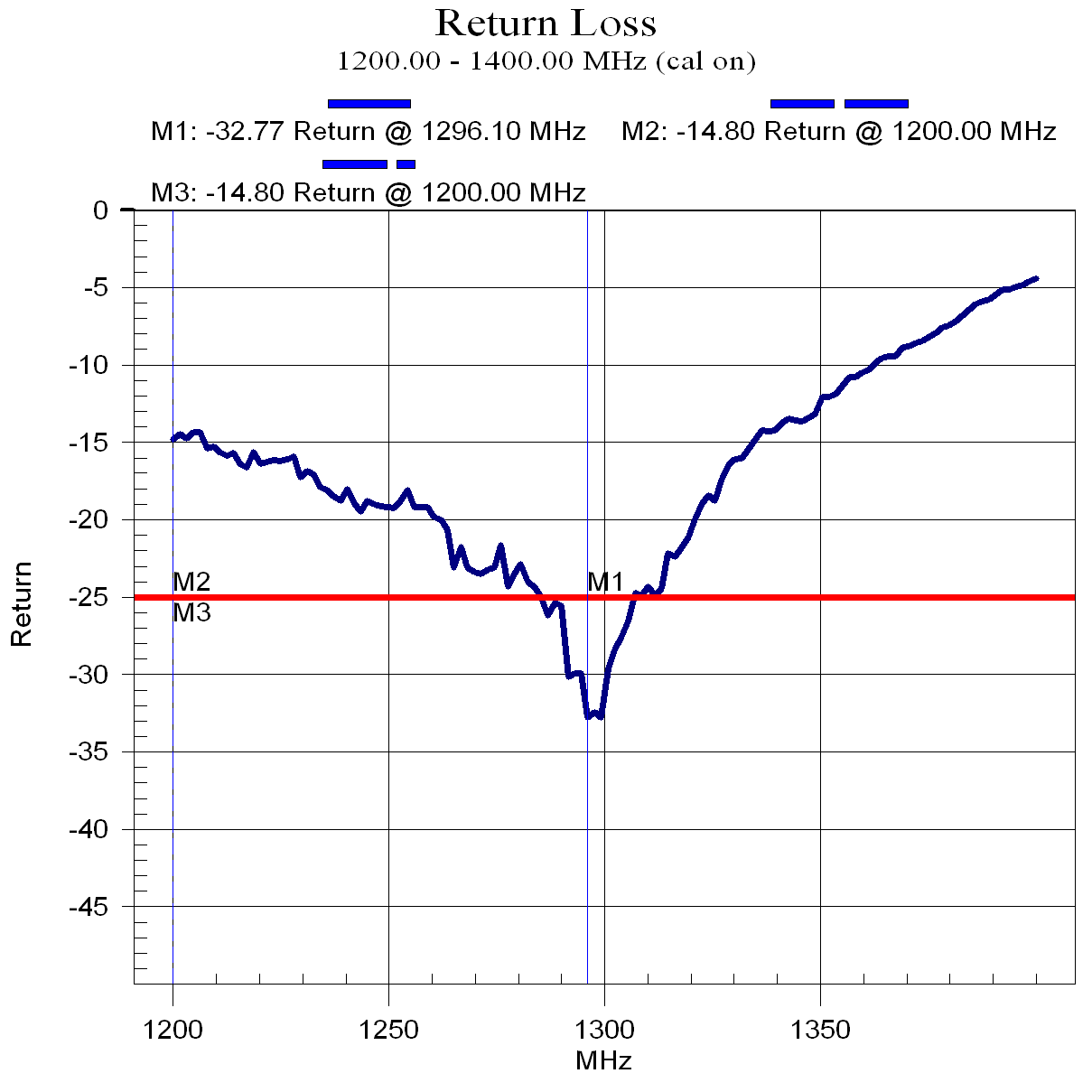

SWR diagram of 1296 MHz feed installed in the feed point of 10m dish.

Click on picture to max. resolution

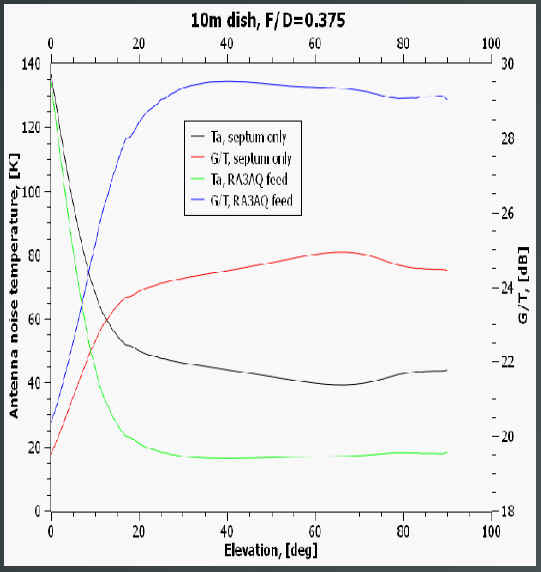

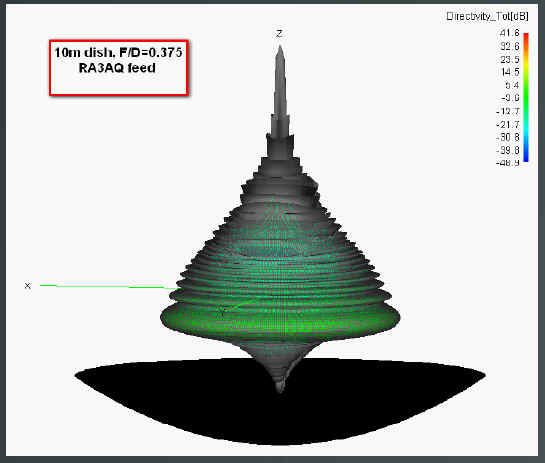

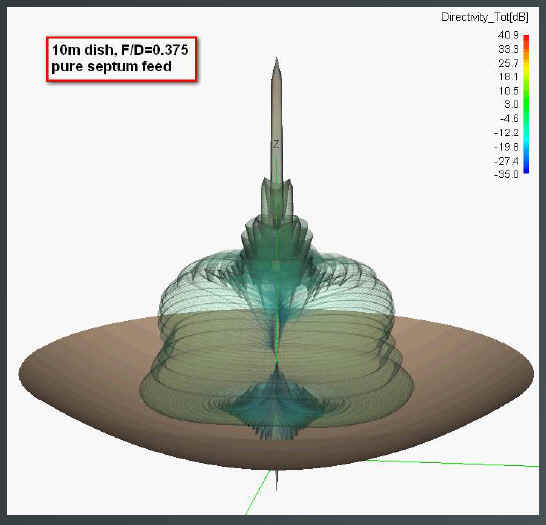

Diagram with original OK1DFC feed Optimize RA3AQ feed in 10m dish of OK1DFC
