SSPA 140W out - 2302 - 2424 MHz

This 140W driver I have developed thanks to help of Pavel OK1VT (Rogers PCBs) and Pavel OK1XWA (theoretical things)

This is new SSPA 140W 2,3GHz driver. I am now using this PA for portable EME DX pedition and 13cm activity with my 10m dish. In next future it will work as a driver of new 500W out SSPA.

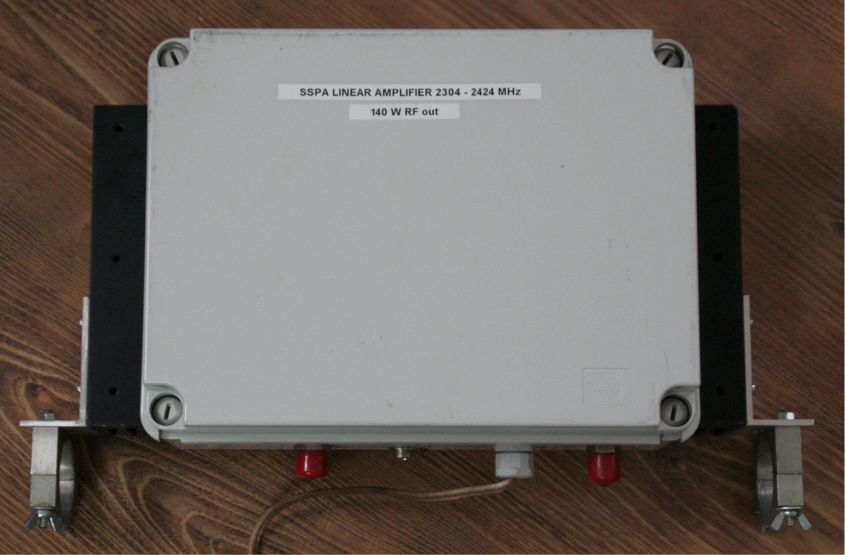

SSPA with heat sink in PVC box for installation  behind of dish

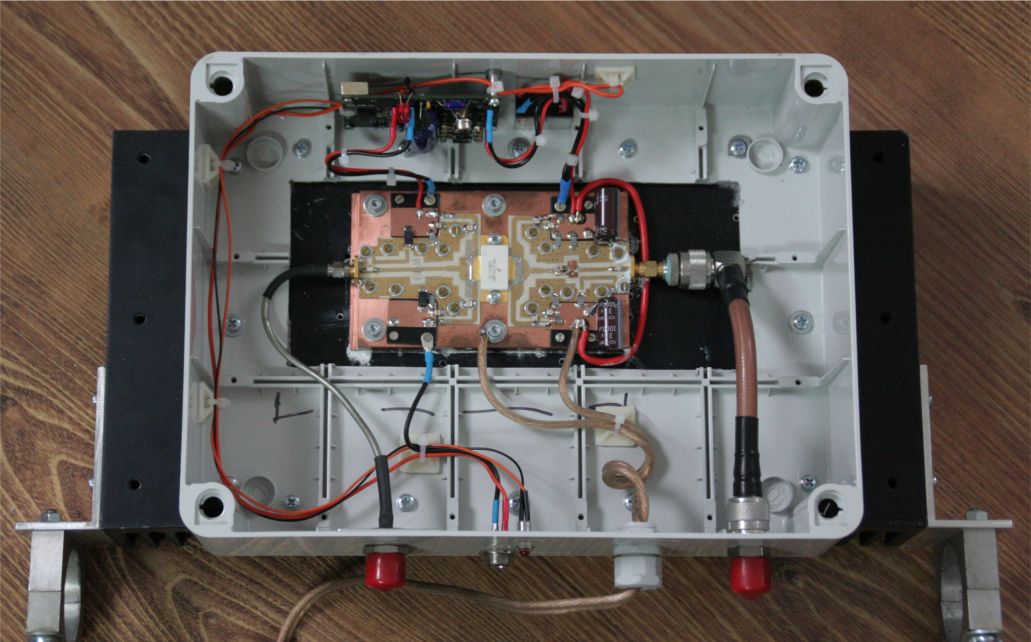

Opened PVC BOX.

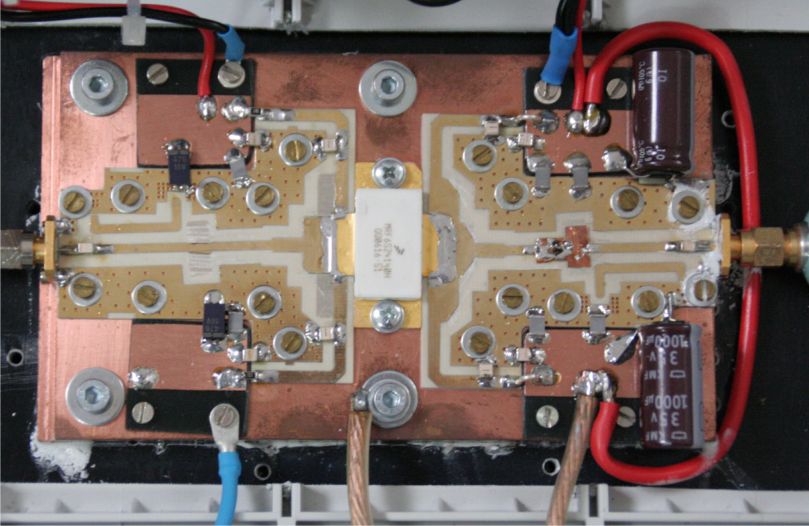

PCB with MRF 6S2014, PA giving easy 140W out with 25W driving power
