OK1DFC – 8m offset - balancing boom

19/08/2021

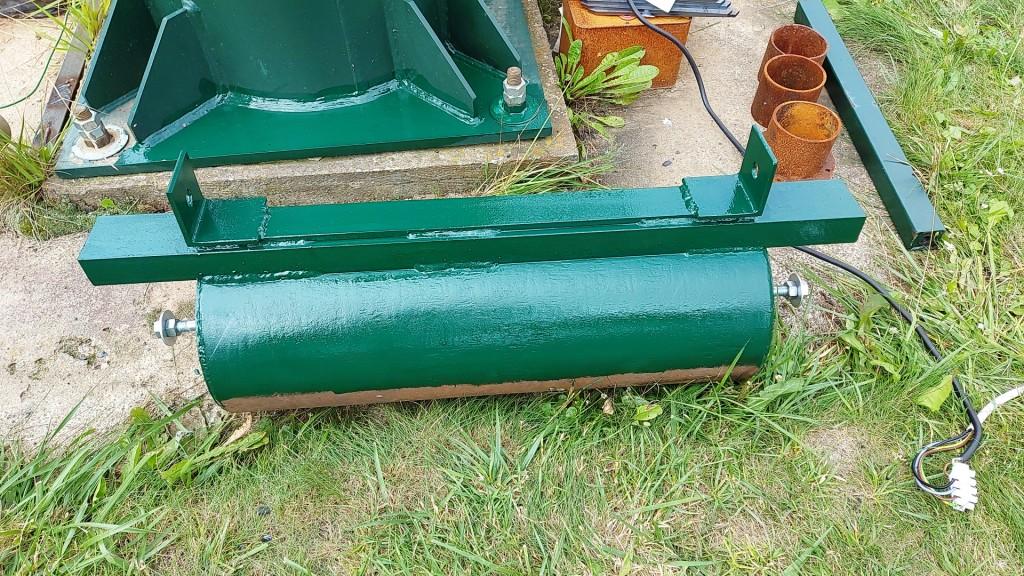

Today I finished the counterweight to the dish that will be installed on the balancing boom. Total weight 300 kg.
27/08/2020

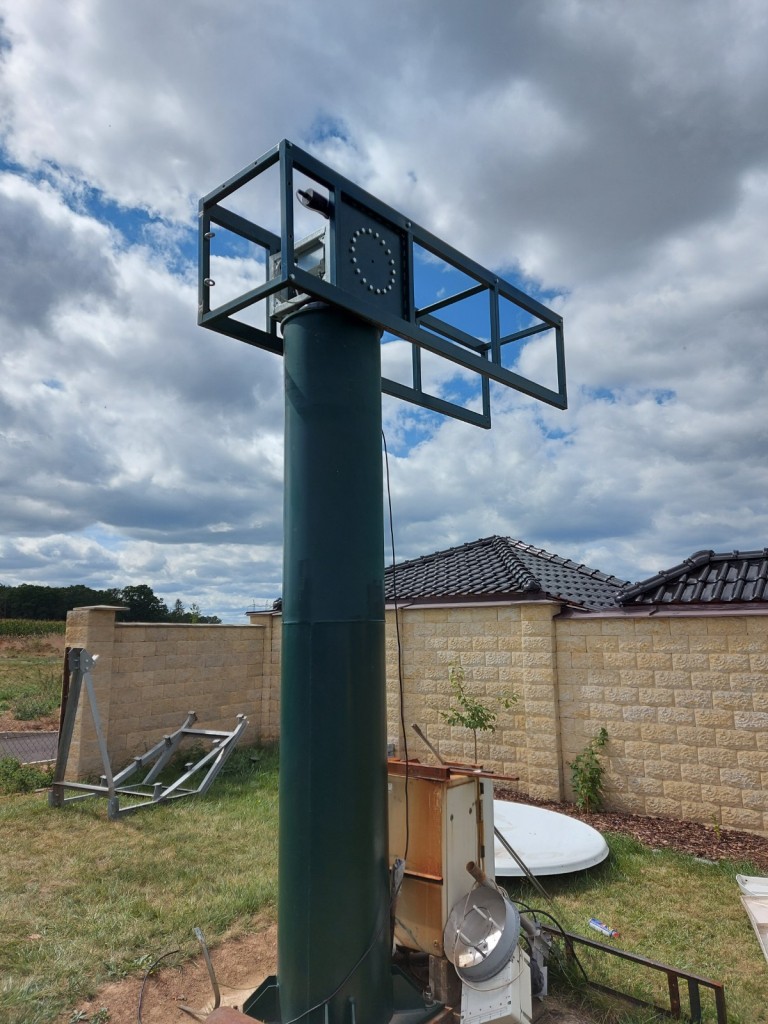

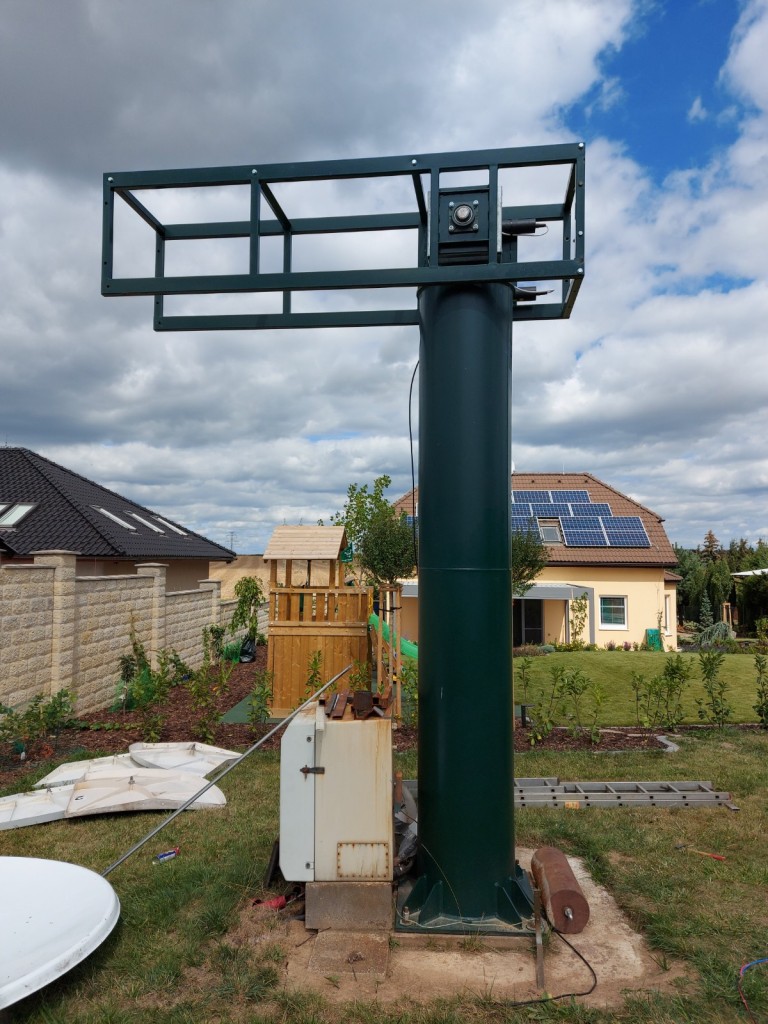

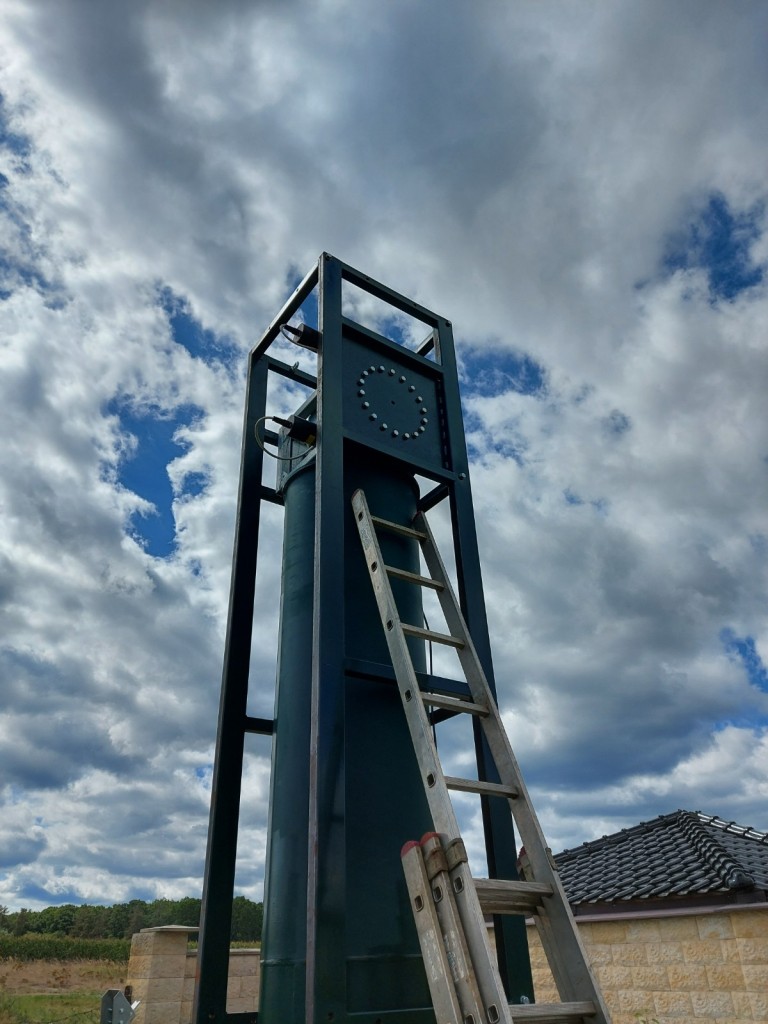

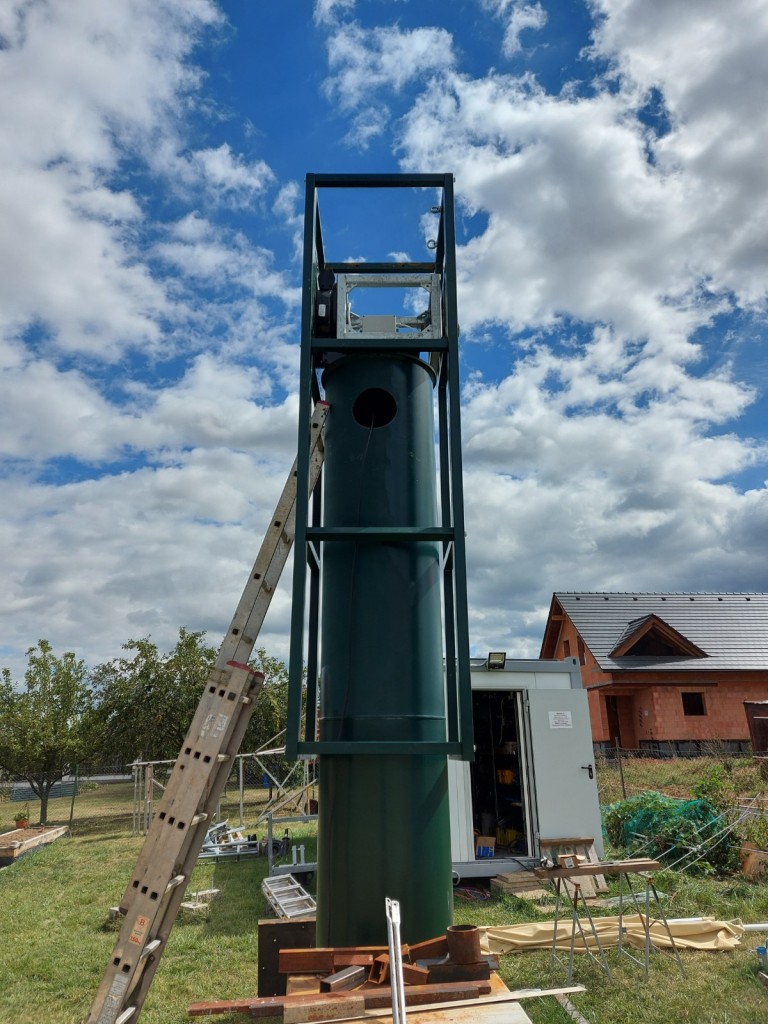

Next pictures are showing working and installed balancing boom on the mast.
12/08/2020

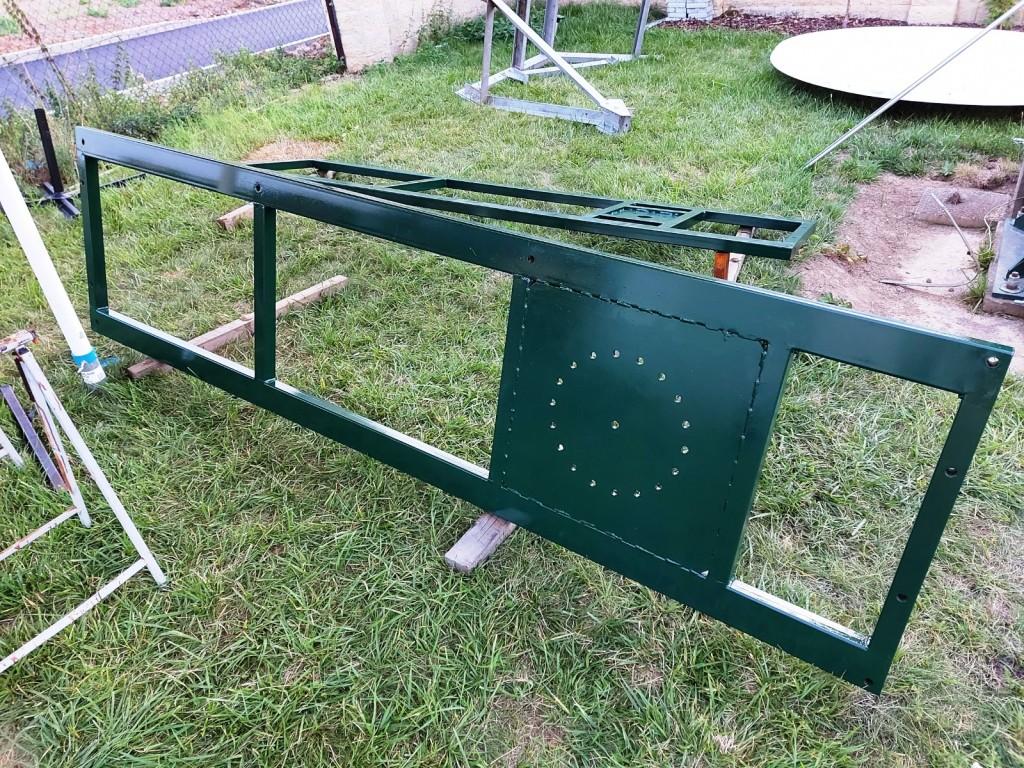

Balancing boom is ready to install, next days I have to finish central HUB for ribs in the dish

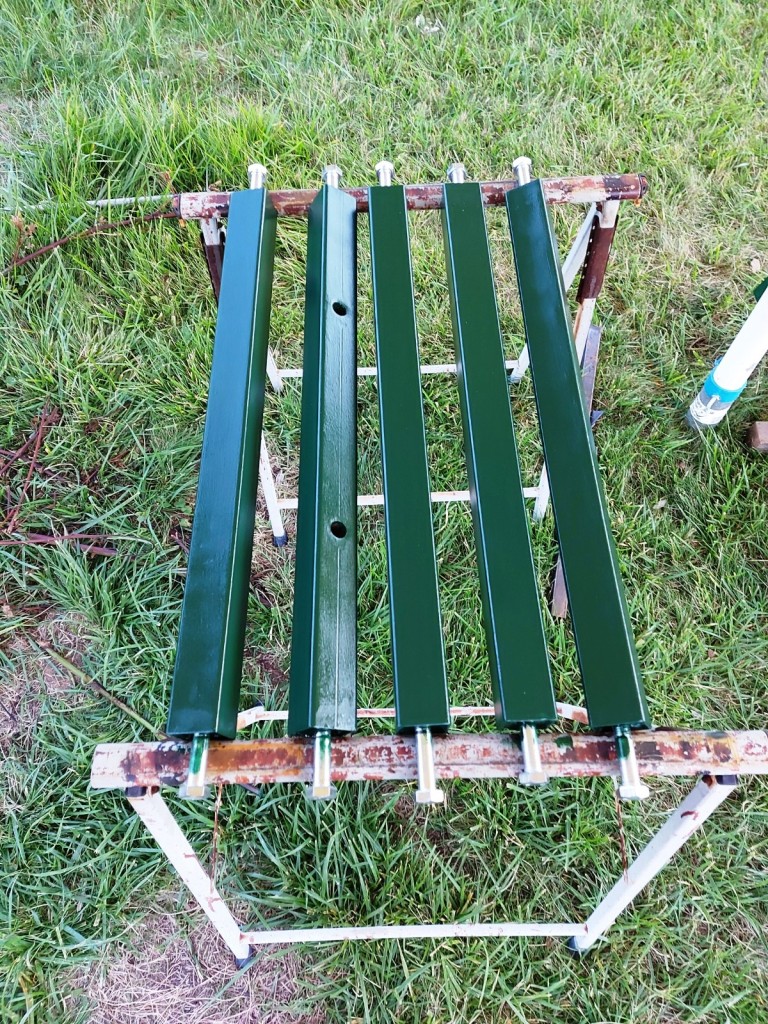

All parts are painted and ready for assembly
05/08/2020

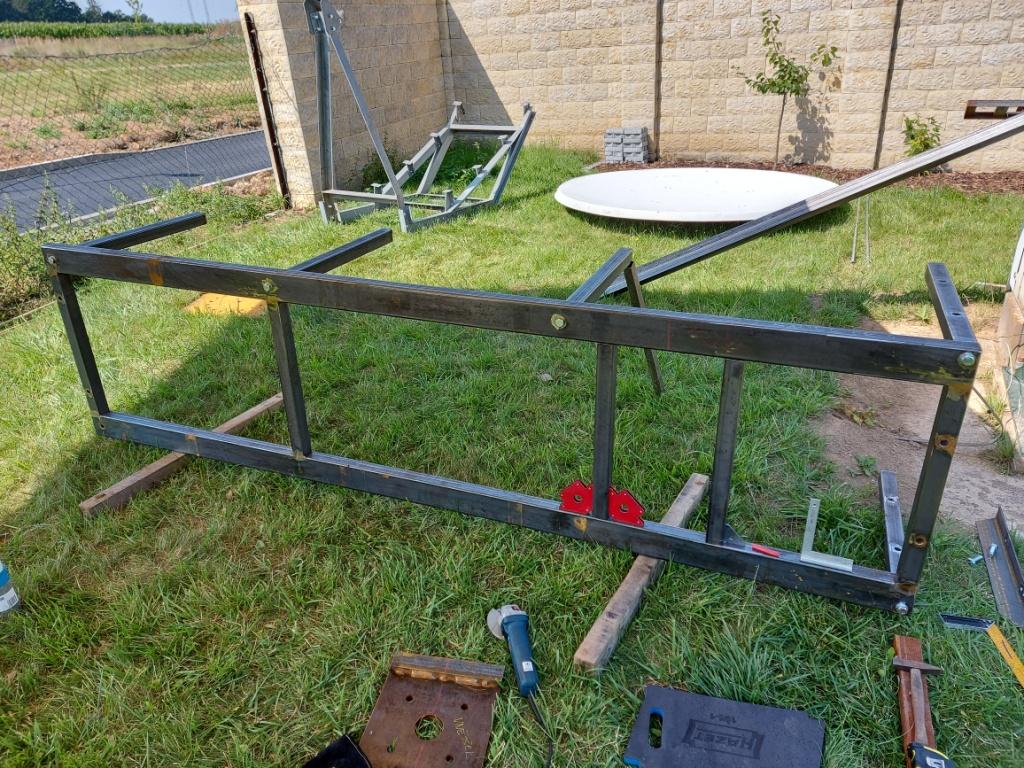

Balancing frame, welding components

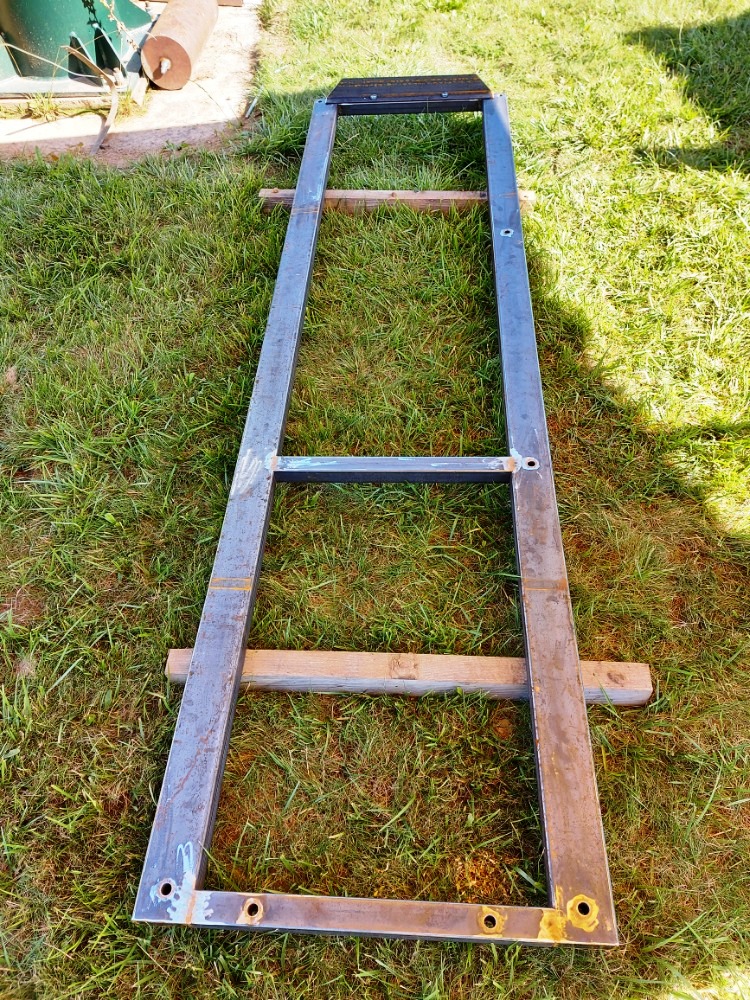

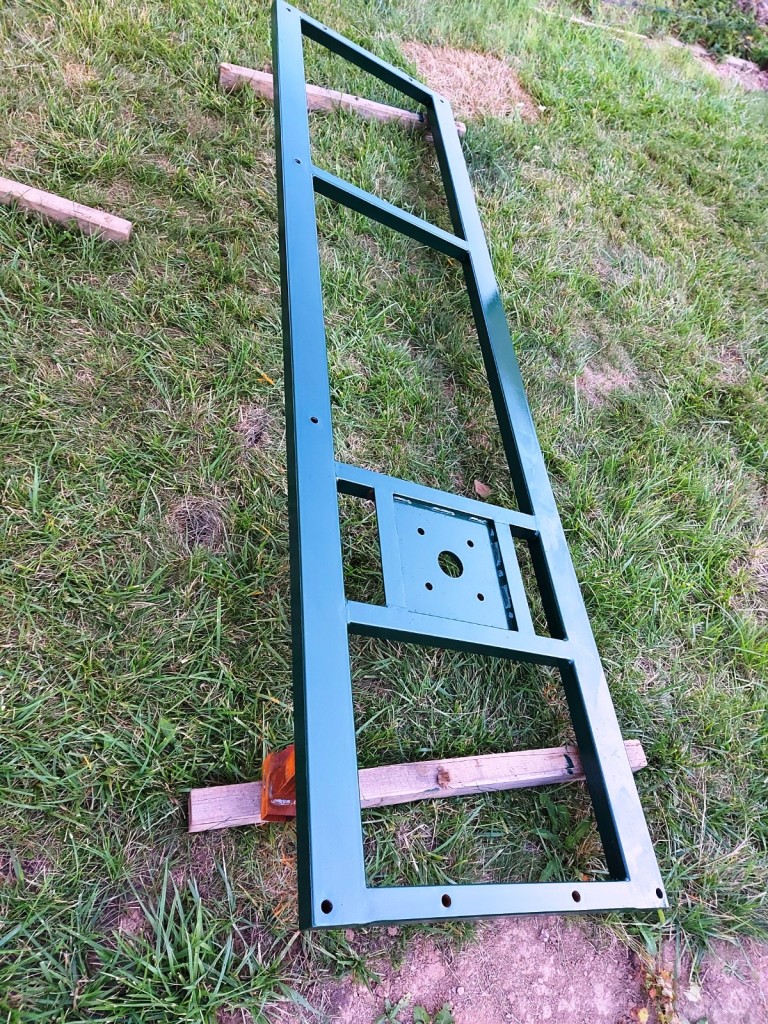

frame of balancing boom

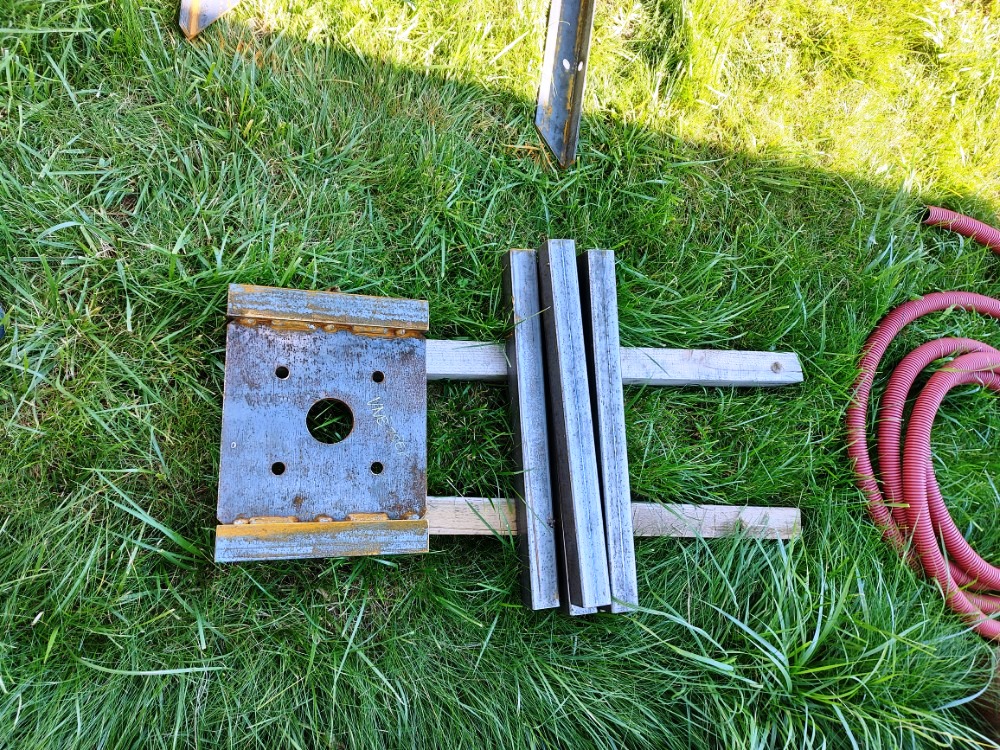

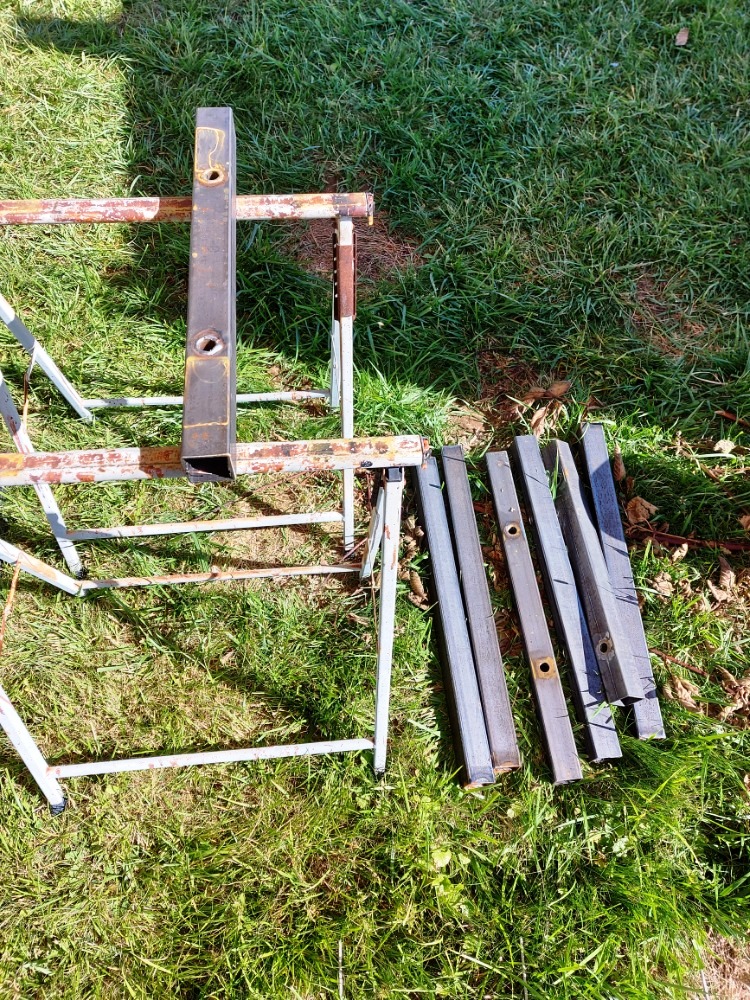

parts for balancing boom

parts for balancing boom
