76 GHz EME activity

  Page navigation:
















76 GHz - setup

16.10.2025

TRV v1.0 and IC9700 - Leo Bodnar GPS locked - DB6NT TRV - USBIII Microham interface

2,4m offset solid dish - Skobelev feedhorn - SSPA - NIL

 VLNA - 3,8dB N/F-30dB gain





RX performance test:

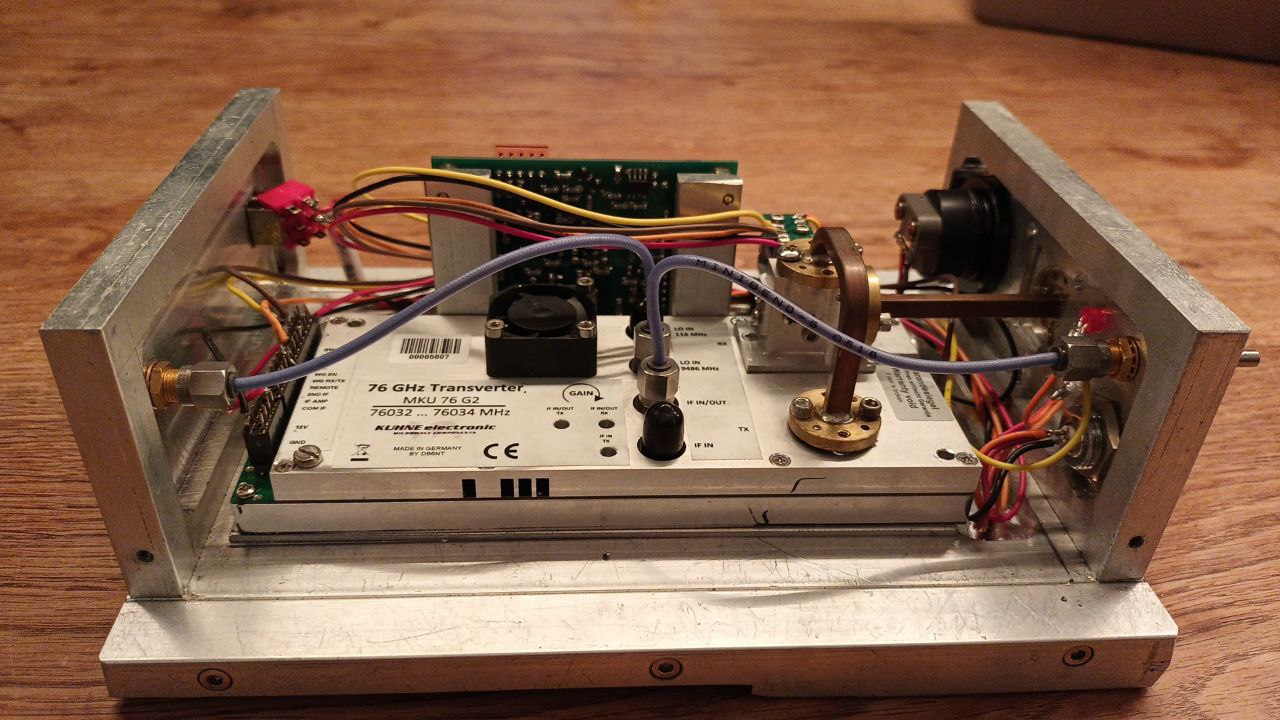

TRV DB6NT 76 GHz and WR12 switch RX/TX - 180mW out

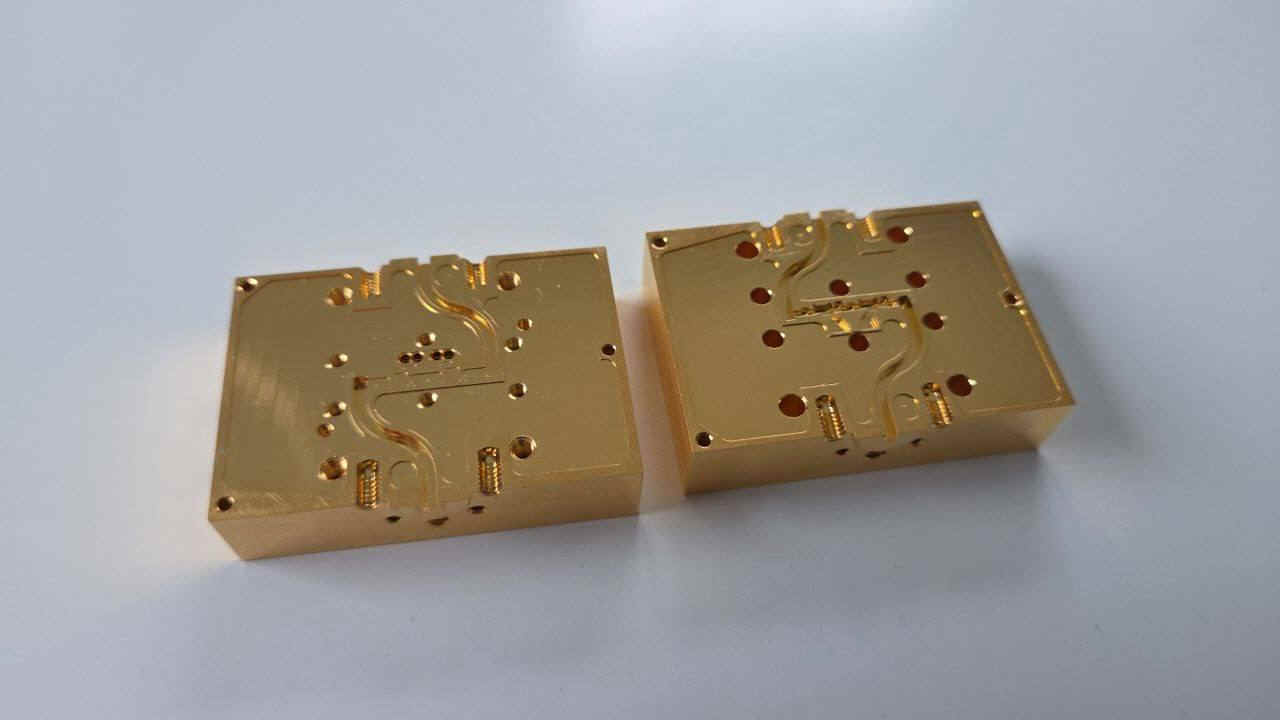

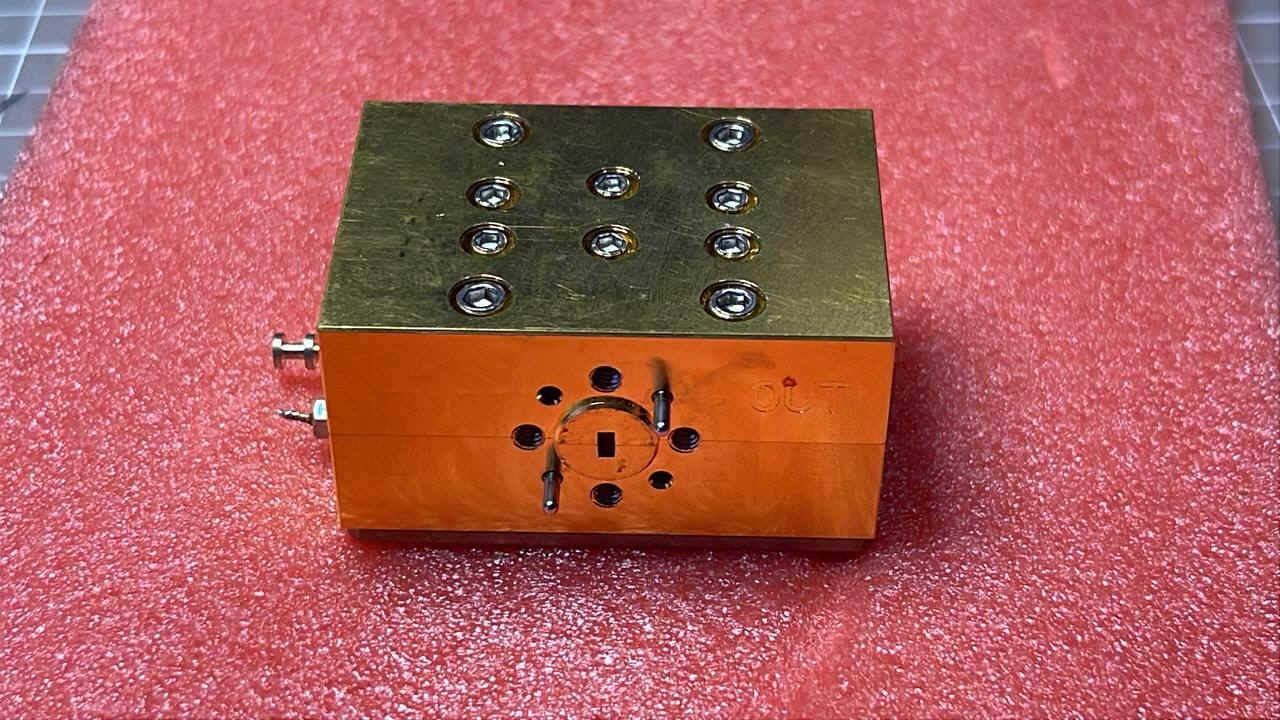

LNA 76 GHz 3,8dB N/F - 30dB gain

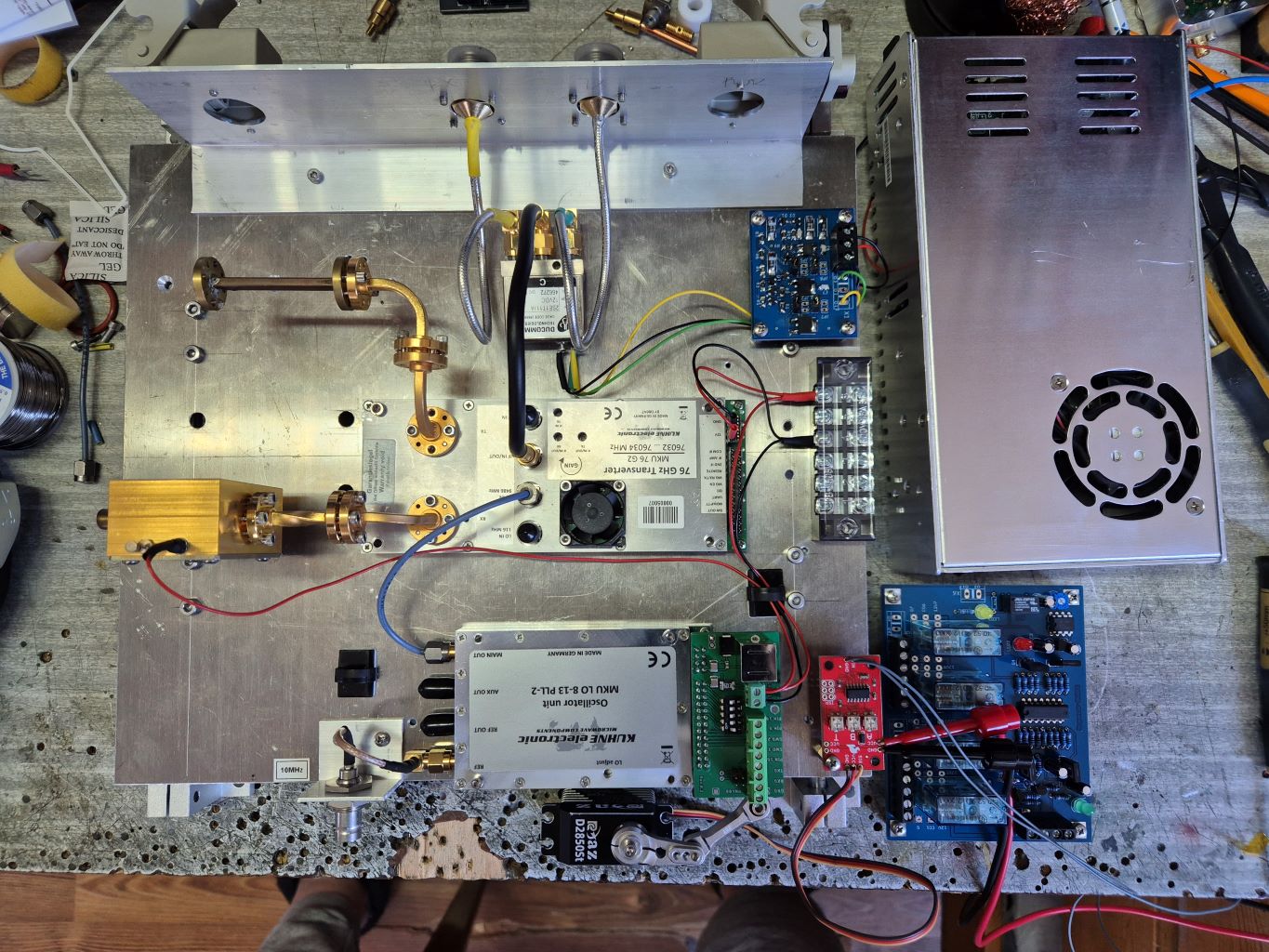

Parts of 76 GHz system









DXCC:
1       2       3


TOTAL:  0  16.10.2025



TOTAL: 0 Fields 16.10.2025
