24 GHz EME TRV v1.0

24 GHz - transverter 1st version



TRV v1.0  IC756PROIII + 144 MHz IF TRV + TRV 24.048 GHz 1,6dB N/F - 2,6W





VLNA v1.0 DB6NT waveguide design 1,6 dB N/F (1995 model)





Feed horn: Design linear feed + Kumar ring (VE4MA)

Antenna: 2 - Prime focus 1,8 m portable setup



TRV v1.0 build

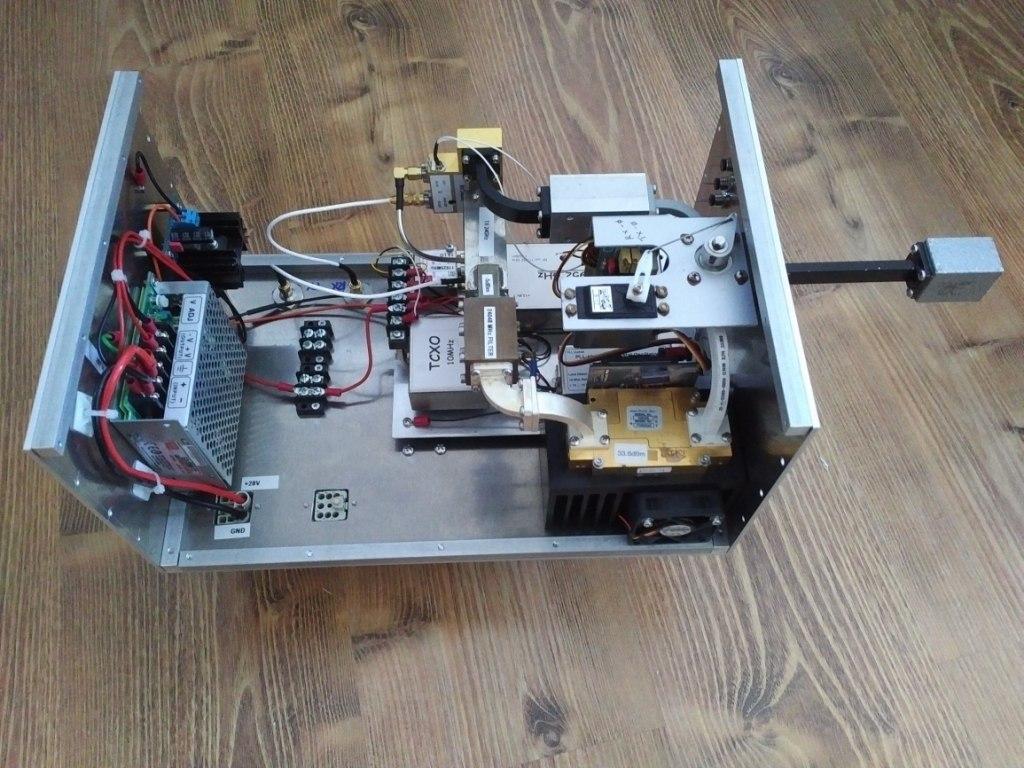

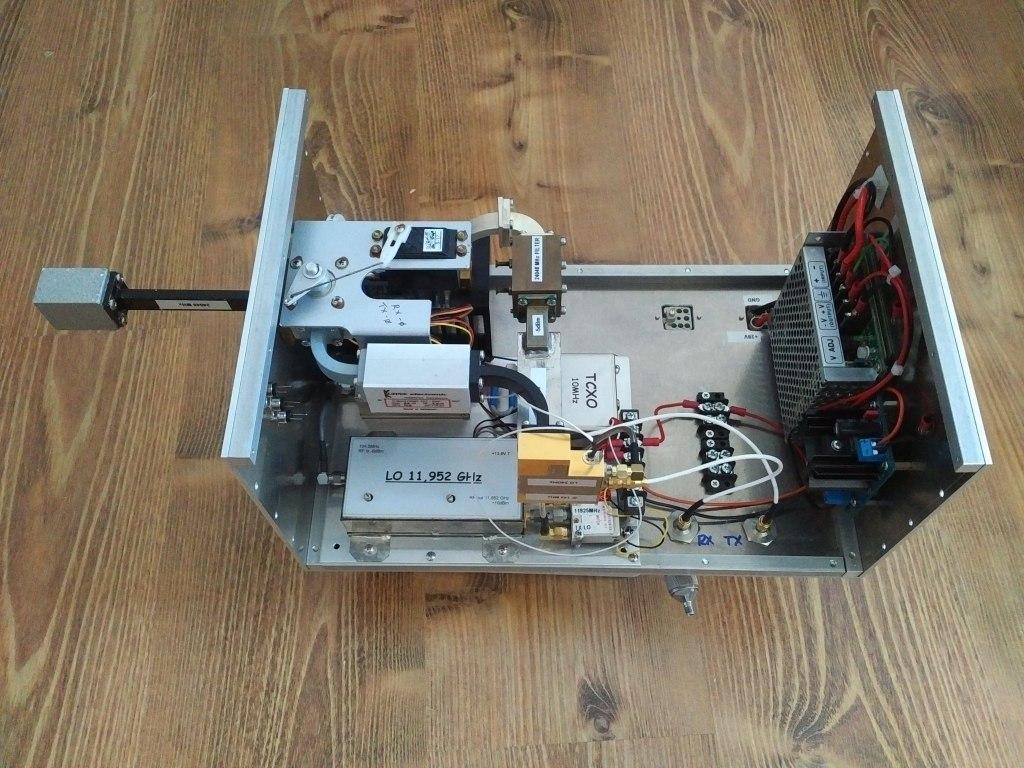

TRV v1.0 - RX side - TRV has 28V DC in - back side including DC/DC down converter 28/12V DC and 28/24V DC for TCXO heating

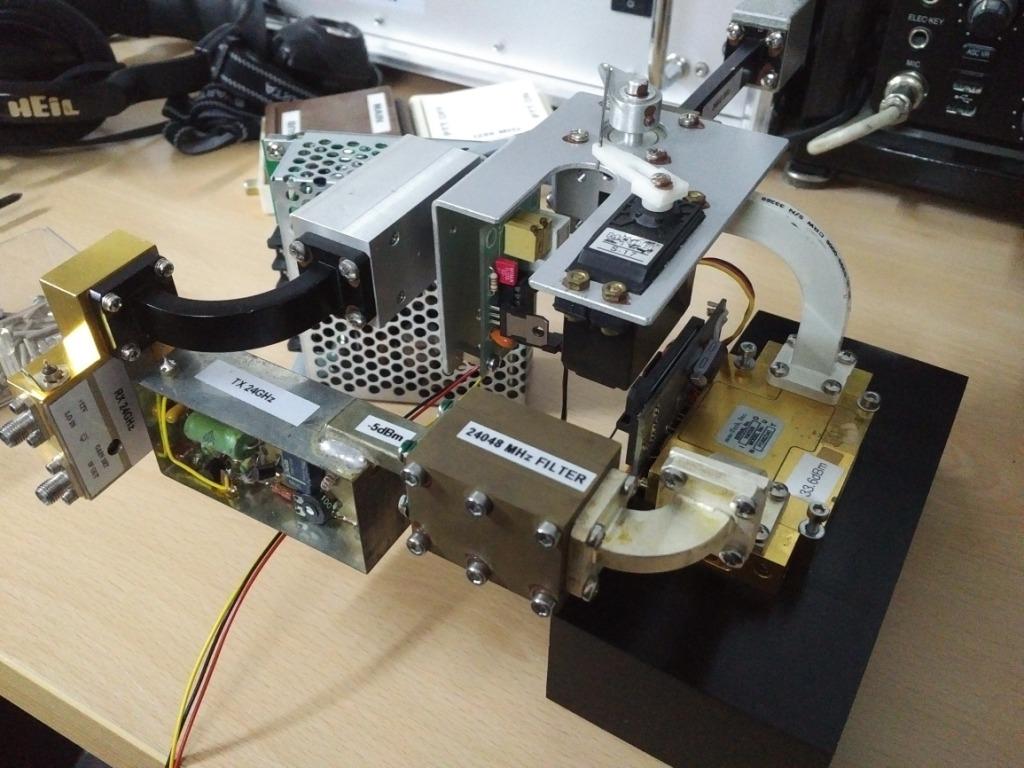

TRV v1.0 - TX side - TX mixer - cavity filter - SSPA 2,6W RF out with heat sink and small blower.

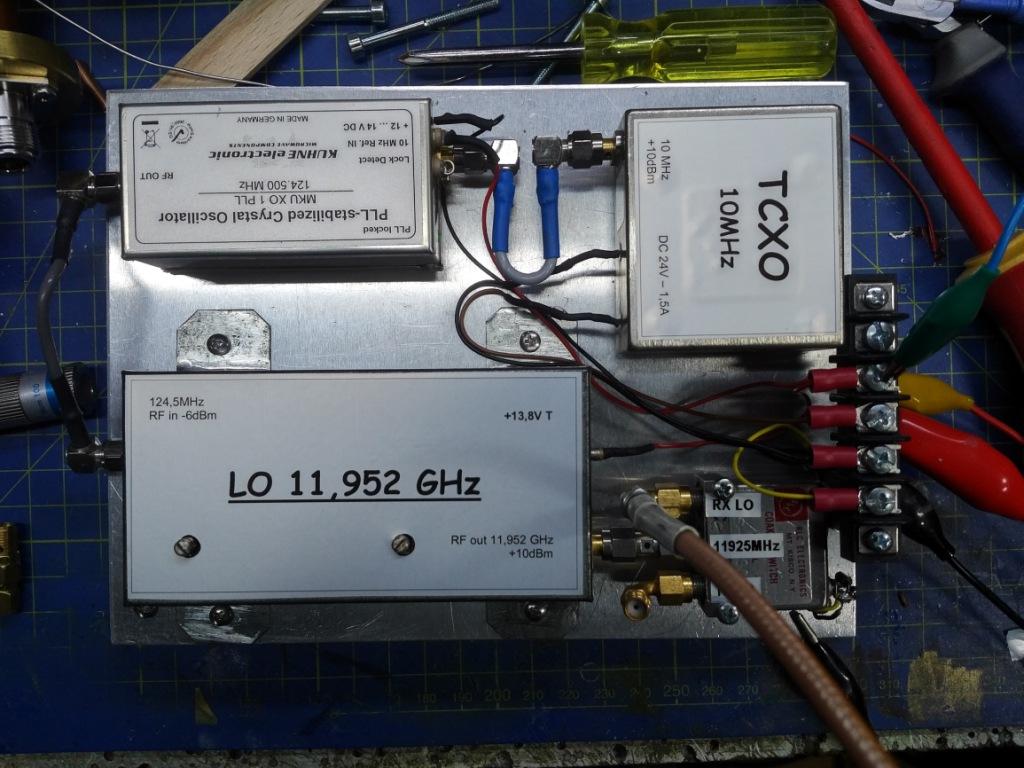

PLL LO DB6NT 124,5 MHz - 10 MHz TCXO Agillent - Multiplier 11,952 GHz

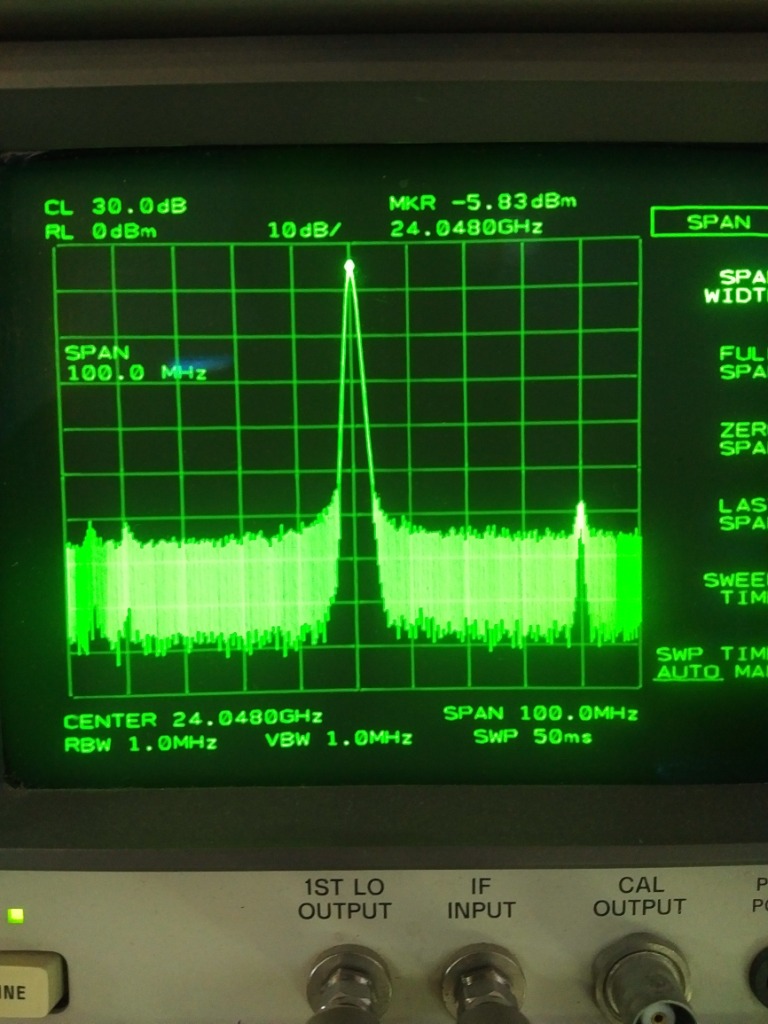

24.048 GHz output signal after filter OE9PMJ design

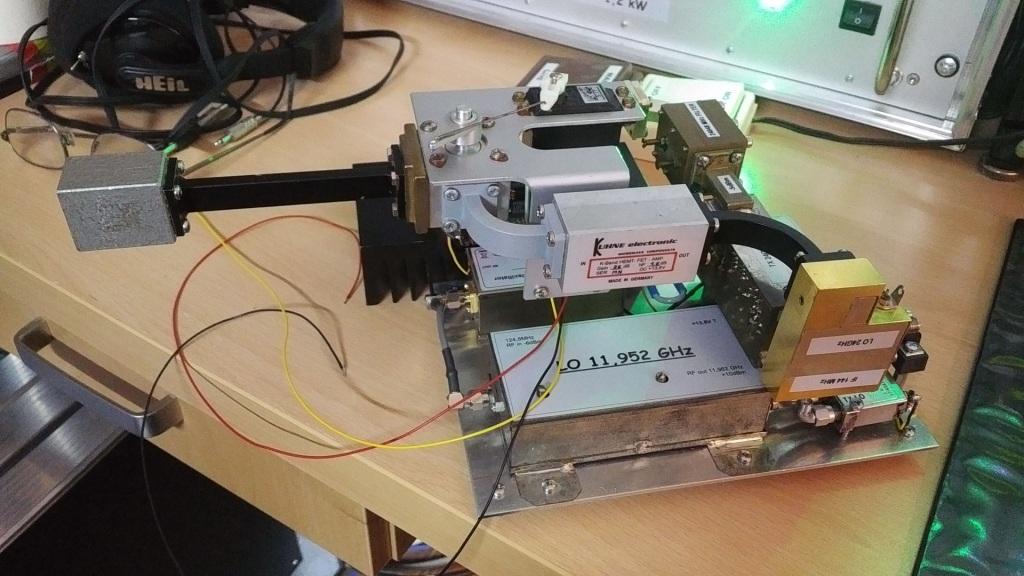

TRV v.1,0 - 2,6W RX VLNA 1,6dB N/F - WR42 RX/TX switch DB6NT TX mixer - cavity filter 24,048 GHz OE9PMJ - SSPA 2,6W out
