E77DX

EME SHF pedition 144 - 432 - 1296 - 2320 - 3400 MHz

12th - 18th of July 2009



Rigs:

144 MHz - 4x3m long Yagi DK7ZB - PA GI7B 400W - MicroHam, FT847 - ATF54143 VLNA

432 MHz - 3,2m dish + LNA ATF54143 - 0,3dB - OK1DFC design - Ring feed OK1DFC - PA  2X3CX800A7 K1FO design. SPID rotator and GM4JJJ tracking SW - TRV OK1DFC + IC7700 - sequencer - JT65 interface - MicroHam

1296 MHz - 3,2m dish + LNA NE325 G4DDK - 0,3dB - Septum feed OK1DFC - PA YD1330 - TRV OK1DFC + IC7700 - sequencer - JT65 interface - MicroHam

2302 - 2304 - 2320 - 2424 MHz - 3,2m dish + LNA NE325 - 0,46dB - G4DDK design - Septum feed OK1DFC - PA  SSPA 140W RF - SPID rotator and GM4JJJ tracking SW - TRV OK1DFC + FT847 - sequencer

3400 MHz - 3,2m dish + LNA NE325 G4DDK - 0,52dB - Septum feed OK1DFC - PA SSPA Toshiba - TRV DB6NT + FT847 - sequencer JT65 interface - MicroHam



Bosnia and Herzegovina - click on the map
Following picture is showing where we will be QRV

Locator: JN84IX - near Prijedor

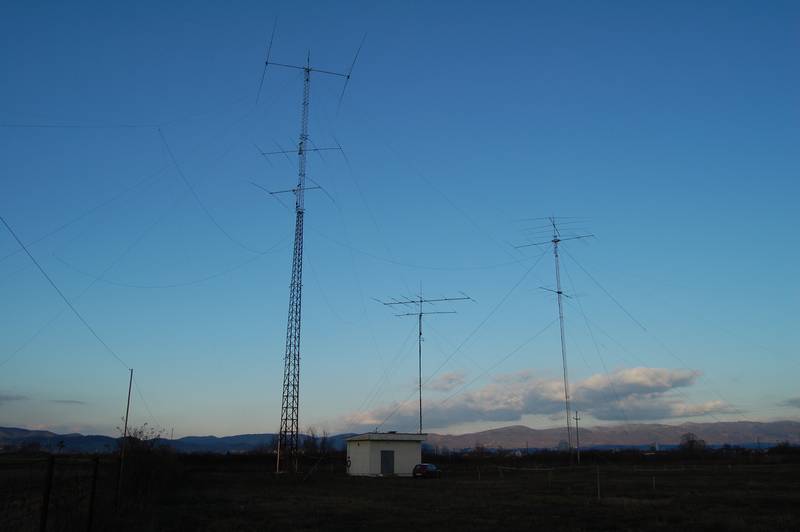

Contest QTH of E77DX



Time table:

Date & Time Moonrise UTC Date & Time Moonset UTC Band MHz - QRV Remarks:
12/07/2009 - 21:00 13/07/2009 - 09:00 building systems possible test of units - we will be on HB9Q
13/07/2009 - 21:20 14/07/2009 - 10:20 144 & 3400
14/07/2009 - 21:30 15/07/2009 - 11:20 144 & 2320
15/07/2009 - 21:40 16/07/2009 - 12:40 144 & 1296
16/07/2009 - 22:20 17/07/2009 - 13:40 144 & 432
17/07/2009 - 23:00 18/07/2009 - 14:40 144 & 1296 last part of Moon window affected by thunderstorm
18/07/2009 - 23:50 19/07/2009 - 16:20 144

We are expecting to be QRV CW - SSB and JT mode - coordination on HB9Q chat or for 144 MHz N0UK

FSK 144 MHz M/S traffic - ON4KST

Photo gallery

Table of worked stations:

144 MHZ


ZS2GK,SP2OFW, JH0MHE, I2RV, ZL3TY, OZ1LPR, UA9YLU, CT1HZE, UA4AQL, SM5CUI, PA3DOL, DK5SO, ES6RQ, DL9MS, OM3BC, SV8CS, HA0HO, DK8ZJ, DL1DWI, OH3KLJ, HA6NQ, S52LM, W5UN, G4ZFJ, DF2ZC, DF7KF, ZS6OB, RA6AX, F6APE, UT6UG, AA7A, DM1CG, K1OR, F1DUZ, RN6BN, F6HVK, DK4TG, F8DO, JE1TNL, RX1AS, SW8KOU, YU7XL, RU1AC, IK1FJI, EA1YV, OK1CU, DJ3VI, YO9FRJ, UA3PTW, DL2LAH, SM7GVF, F6HVK, OH7PI, PA0JMV, PA3FPQ, K2BLA, DO1ERS, DP5G, DL8GP, PA3CMC, HA0HO, OH7PI,PI9CM, JR3REX, JM1WBB, PE1L, SP2NJI, OH2LHE, JS3CTQ, JM1GSH, G4EZP, RU3GX, PE1LWT, G4CBW, SM5DIC, G8VYK, PA3CSG, EA2AGZ, PA1GYS, RU1AA, PA3FPQ, RZ4HF, K9MRI, HB9Q, AA4SC, WA3QPX, KB8RQ, WA3BZT, ZL2DX, RK3FG, VK4CDI, OK1UGA, DH3YAK, RA9YDL, DK5LA, F6HVK, OH4LA, S52LM, F1TE, I3EVK, YO9HP, JH8CMZ

CW QSO - OK1MS, RU1AA, SP7DCS, SV1BTR, UA3PTW

LOG of 144 MHz - web of OK3RM



432 MHz 1296 MHz 2320 MHz 3400 MHz
UA3PTW,, DL7APV, OZ4MM, VK3UM, SP6JLW, DL9KR, OK1CA, OK1KIR, LZ1DX - JT, OK1KIR - JT, I1NDP - JT, PA3CSG - JT, I1NDP, G3LTF, PA3CSG, G4RGK, HB9Q - JT, F2TU, K2UYH - JT, K2UYH, DF3RU, SV8CS - JT

432 MHz log



VK3UM, SP6JLW, OK1KIR, OZ6OL, OZ4MM, JA4BLC, ES6RQ - JT, ES5PC - JT, PA3FXB - JT, LZ1DX, ES5PC, RD3DA, OE9ERC, DJ9YW, PA3CSG, DF3RU, PY2BS - JT, F2TU, K1RQG, IK3COJ, DF9QX N.C.,G3LTF, K5JL, IZ1BPN, K2UYH, G4CBW - JT, SV3AAF, DF9QX, LX1DB, G4DDK - JT, G4CCH, K2DH, W5LUA, VE6TA, G4CCH - JT, HB9Q, SK6OSO,VK4CDI - JT, RD3DA - JT, JA6AHB - JT, OK1KIR - JT, PA3DZL - JT, SM5CFS - JT, K5GW, ON7UN, SV1BTR

Curious QSO SM5CFS 5,6m dish and 10W only !!!

1296 MHz log



IK3COJ - TROPO, ES5PC, OK1CA, SP6GWN, DL1YMK, OK1KIR, OH2DG, LZ1DX, OZ4MM, PY2BS - JT, PY2BS, G3LTF, W5LUA, LX1DB, HB9Q, SV3AAF, WD5AGO, F2TU, OE9ERC, K7XQ - JT, OE9ERC - JT



2320 MHz log

OK1KIR, OZ6OL, G3LTF, W5LUA, OK1CA, G3LTF DUPE, LX1DB



3400 MHz log

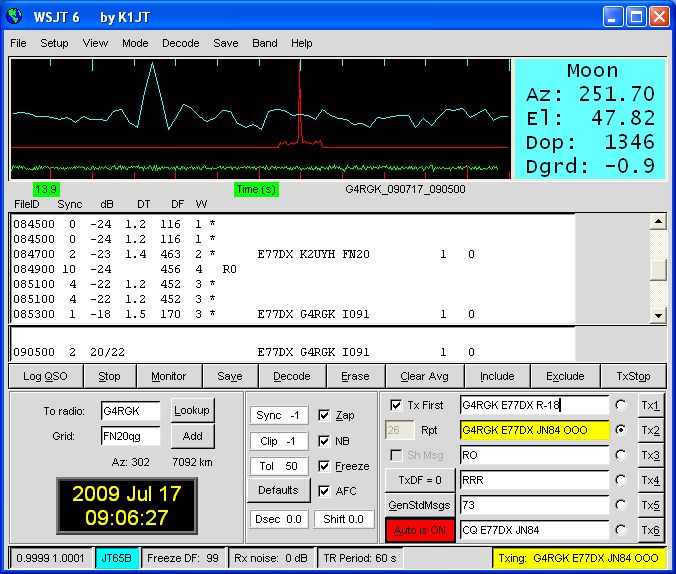

K2UYH + G4RGK on JT screen

G4CCH on JT screen

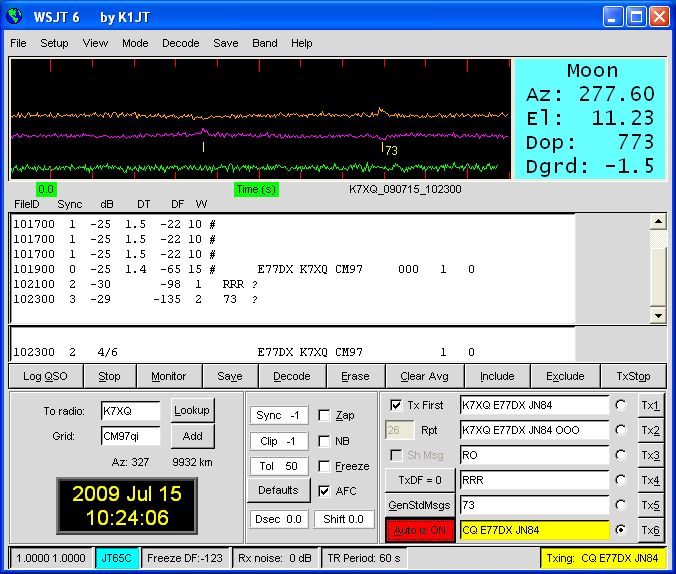

K7XQ on JT screen

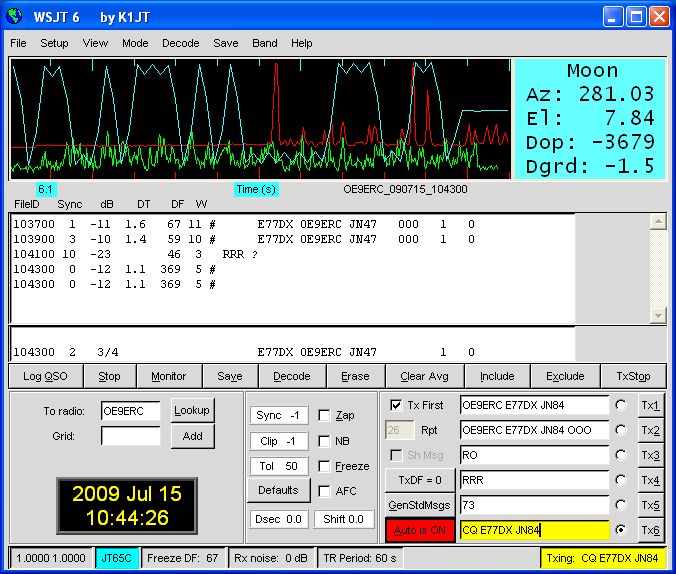

OE9ERC on JT screen

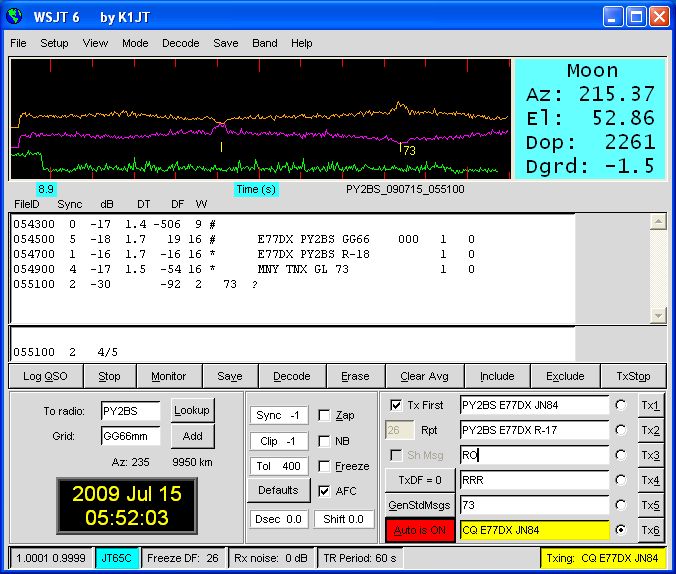

PY2BS on JT screen

QSL with SASE - to my home address OK1DFC on www.qrz.net



our QSL card
