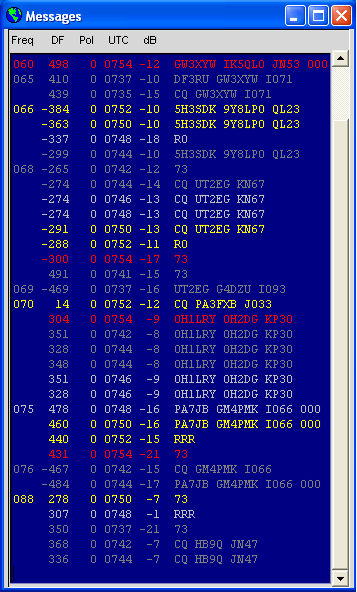

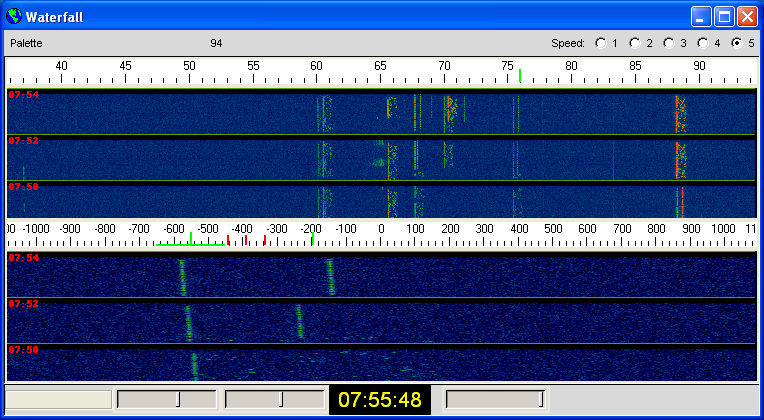

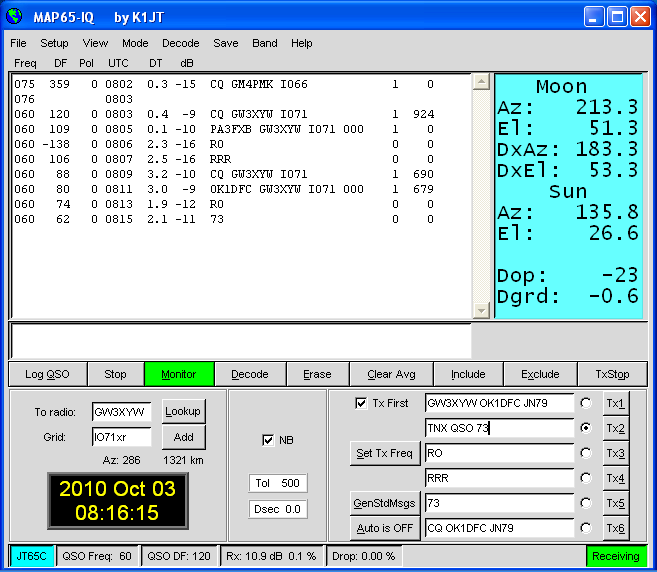

MAP 65 test ARRL EME 2010 - 1296 MHz

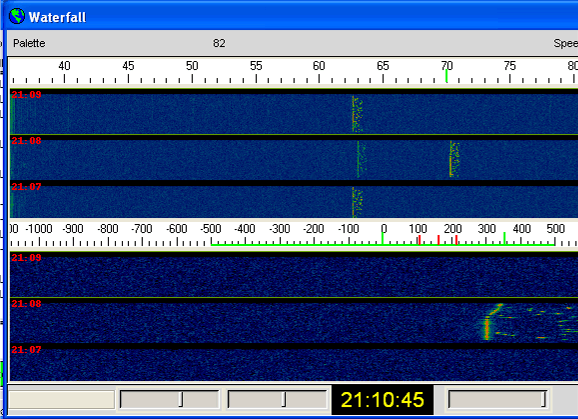

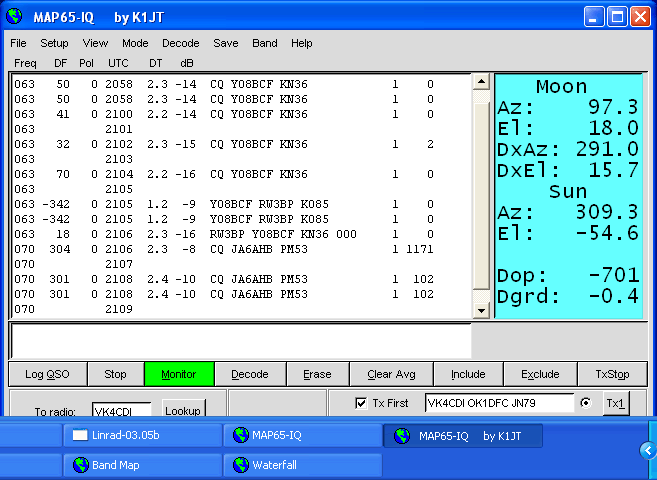

MAP 65 test 3rd of January 2010

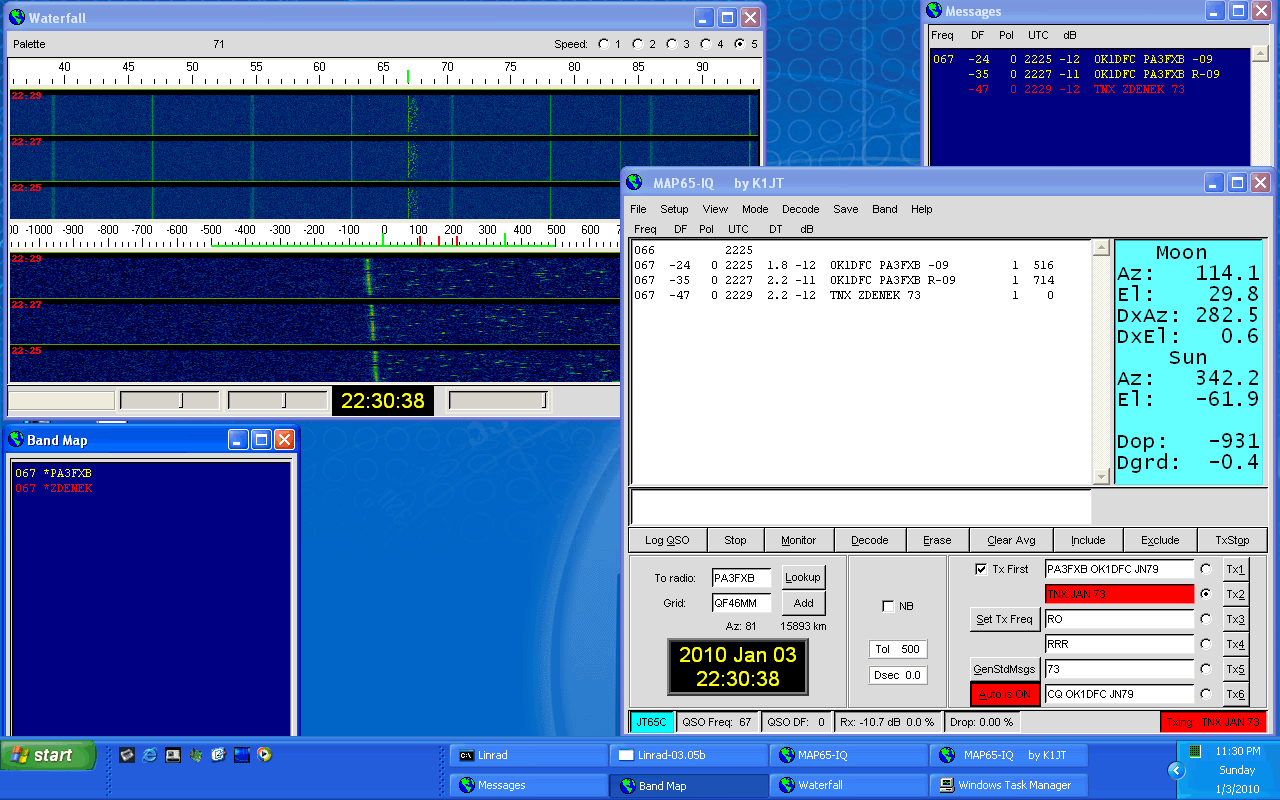

PA3FXB QSO

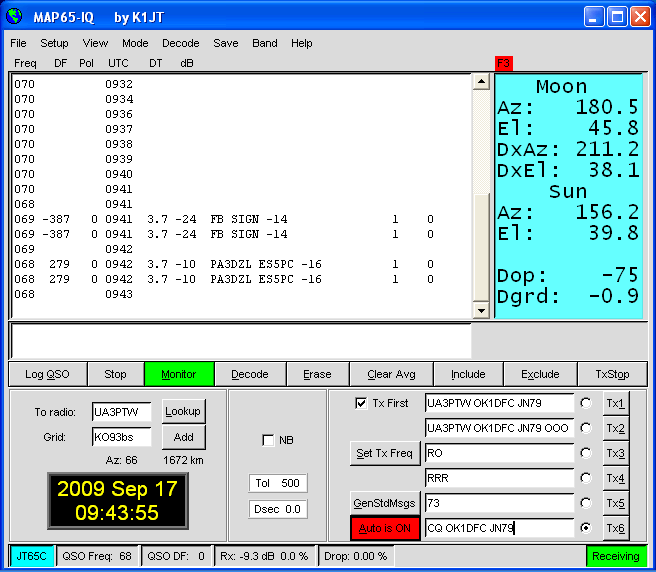

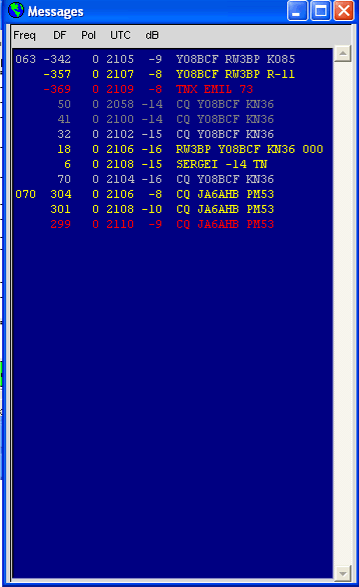

Messages MAP65IQ - main window with decoding
You Tube video

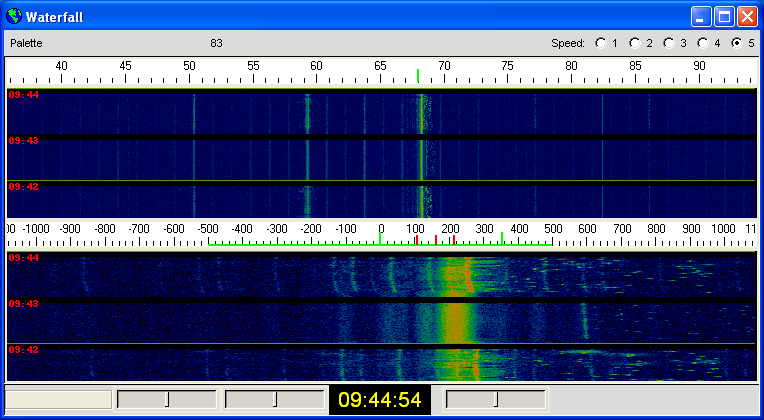

Waterfall

MAP 65 test during ARRL EME 2009

I was trying first time MAP65. Thanks to Jan OK1VAO from OK1KIR club station, I am now running MAP65 in one PC together with SDR14. I had nice test with HB9MOON. With 1.6 W output they received my signals with WSJT at -21 dB and with MAP65 at -23 dB. It certainly appears that with 10 m dishes on both sides only mW are required for digi EME QSOs. With 10 W out I have readable echoes by speaker.

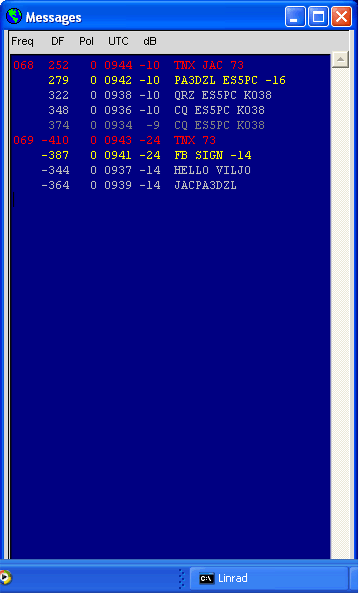

PA3DZL with ES5PC during QSO Stations were calling CQ

Solid signals, speaker copy -14 and -10dB

All stations was possible to easy find, only click on trace
