OK1DFC – 8m offset - controll

03/10/2021

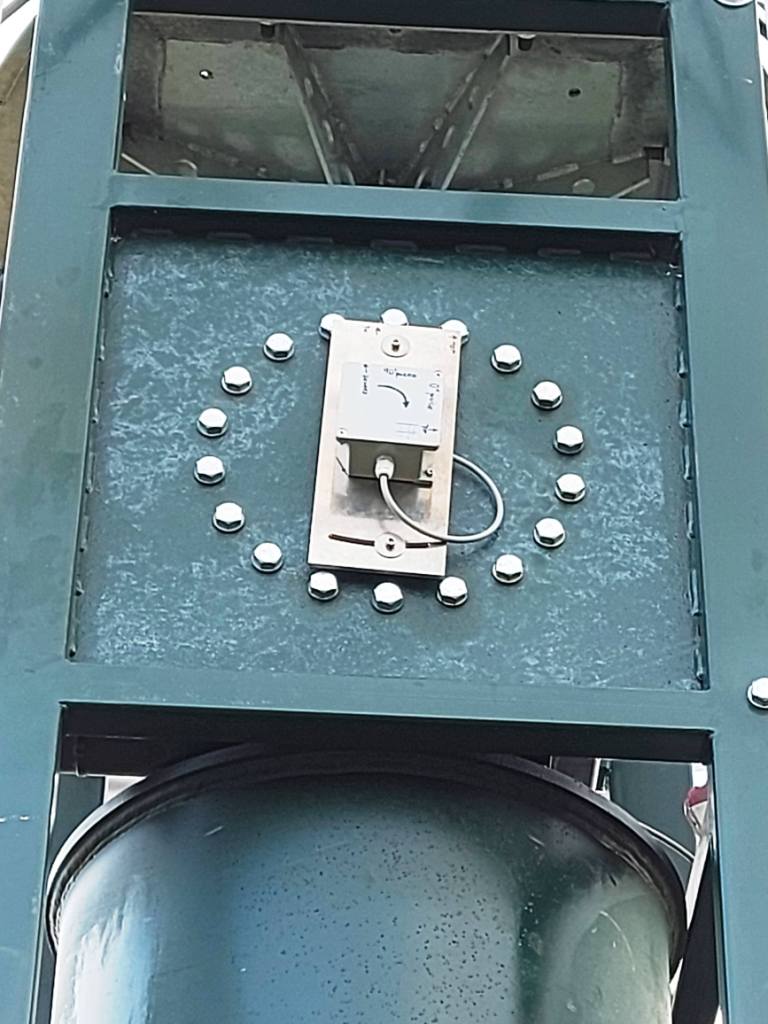

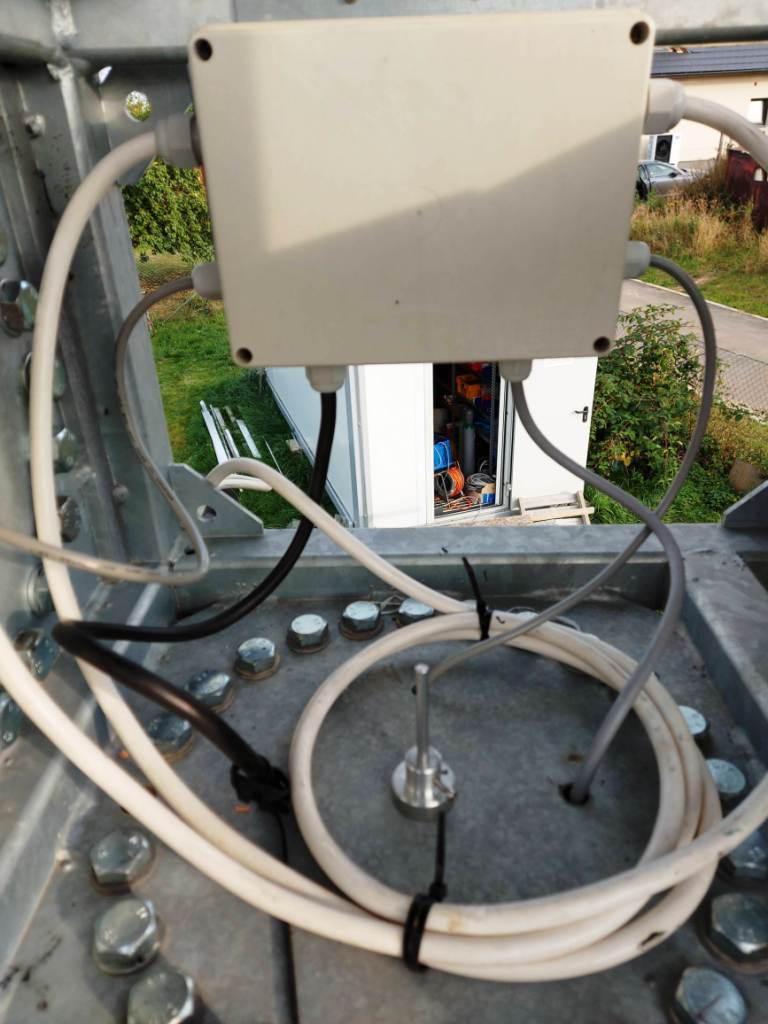

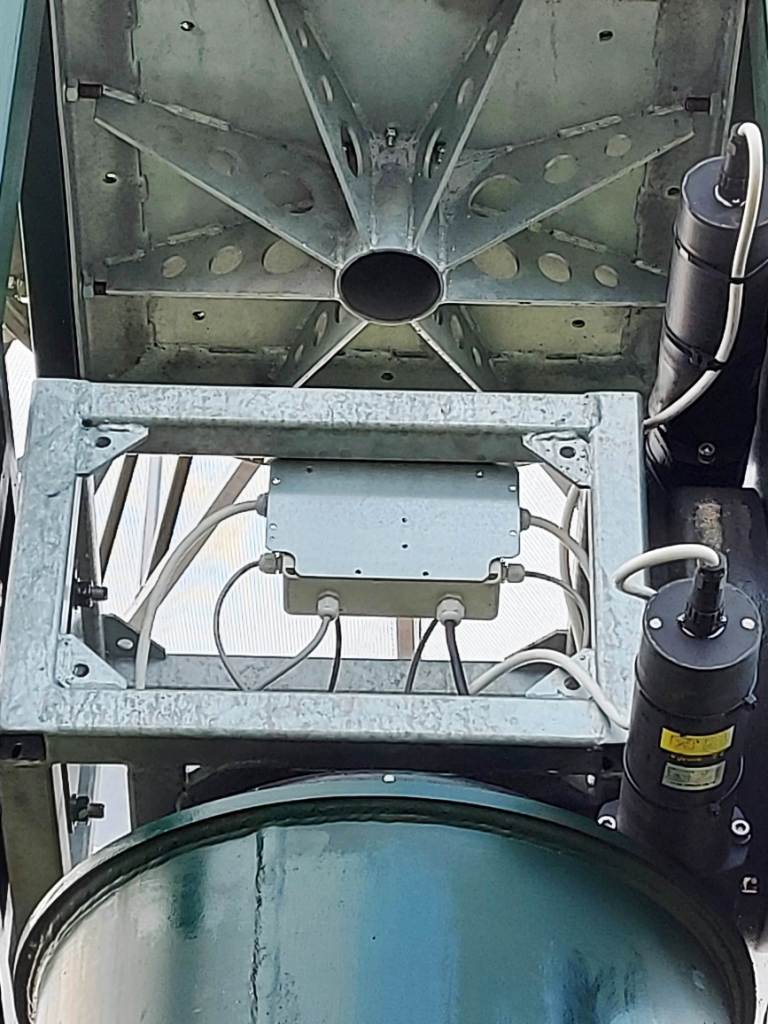

Elevation and azimuth sensors are installed. The POSITAL inclinometer is used for elevation and the MAB25 for azimuth. Everything is already working, I will only calibrate the sensors to the maximum sun noise after the whole antenna has been revived.
27/09/2021

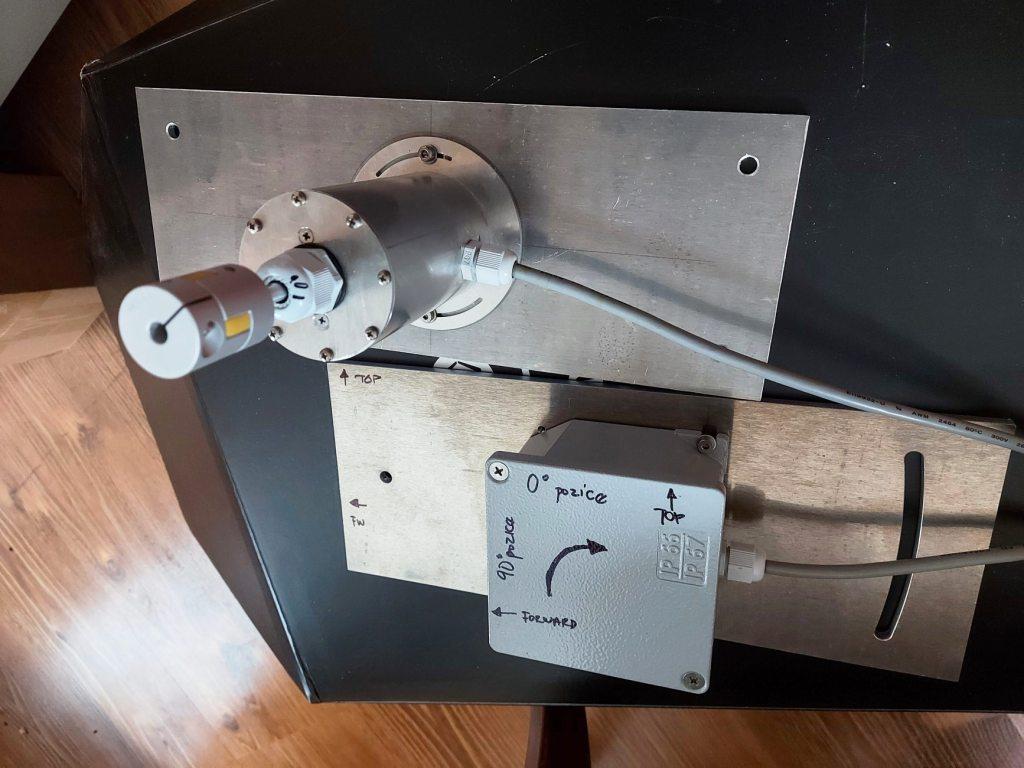

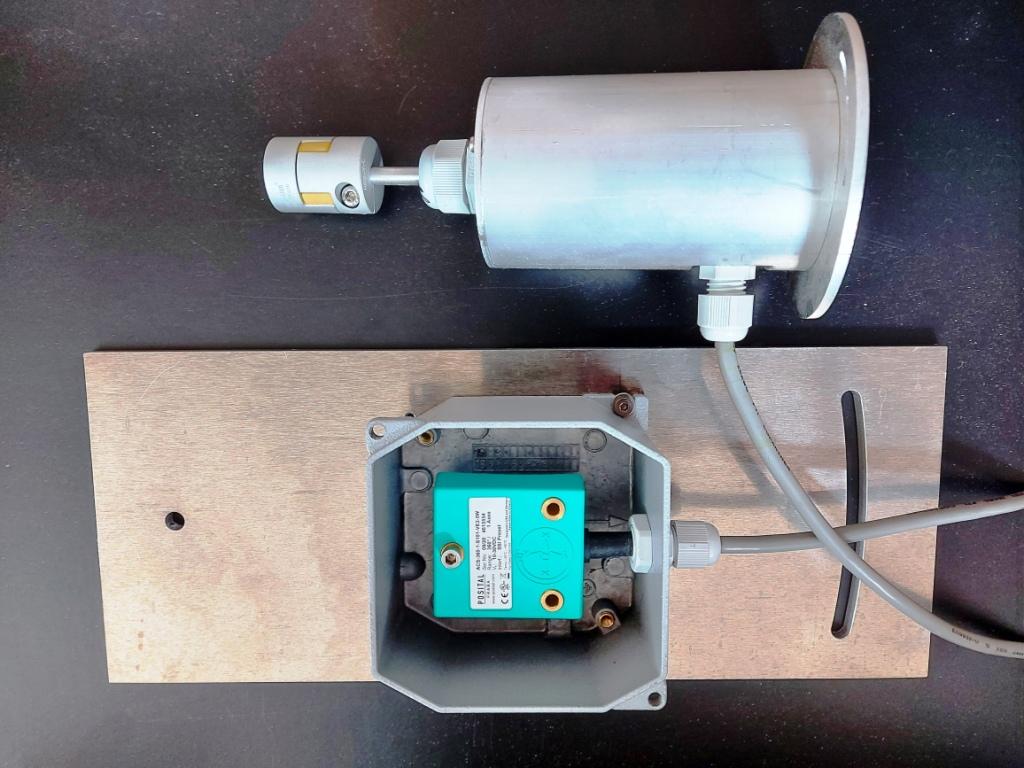

Mechanics for both sensors AZ - Posital inclinometer and for EL MAB25 are completed. Now the sensors will be placed in the antenna and after installing the feed I will calibrate to the Sun noise.
22/04/2021

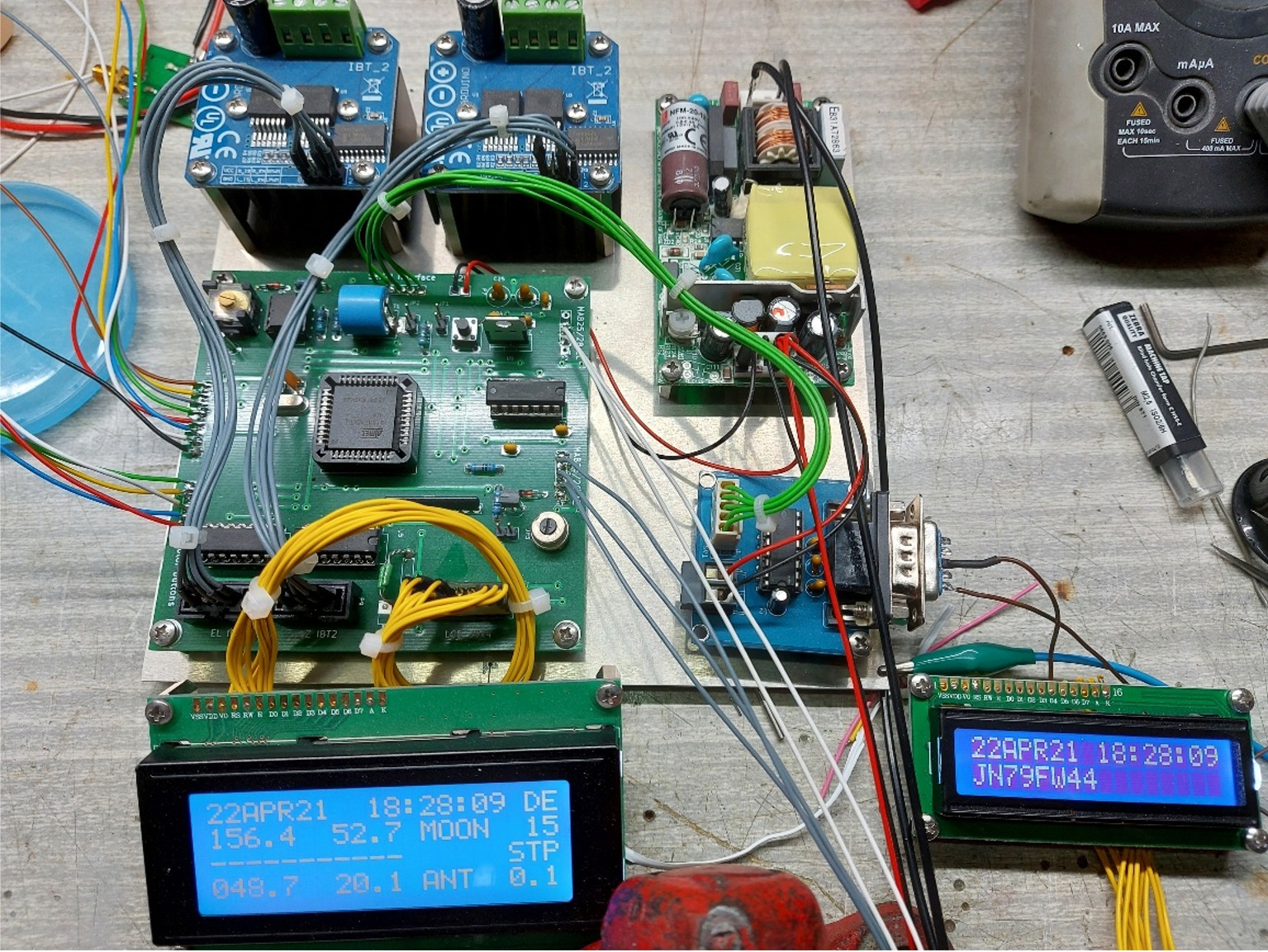

OE5JFL by ON4BCB with high DC current bridges,  GPS receiver, DC 12V/5A power supply and RS232 converter
