NEW 5,6
GHz EME setup
|
|
|
|
|
| Inside of TRV, 28V DC in / 12V DC out power supply | |
|
|
|
| TRV with septum feed and Chaparral ring in 180cm portable dish | |
 |
|

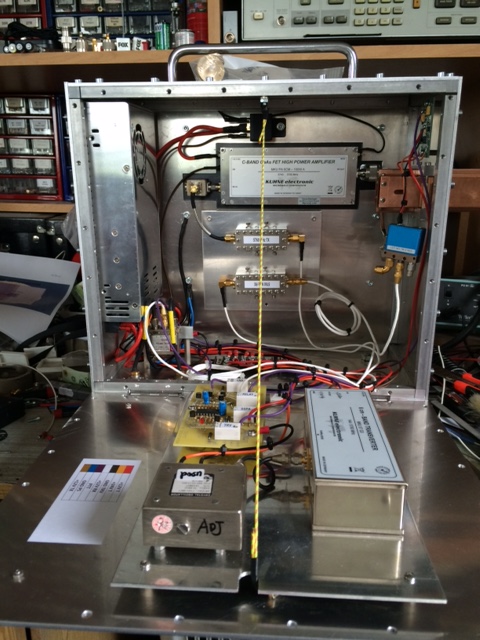

| TRV inside construction, TRV DB6NT 250 mW out, PLL LO and 10 MHz reference oscillator possible to switch in GPS normal. DB6NT VLNA 0,7dB N/F and isolation relay. SSPA and septum feed | |
 |
|
|
Two cavity filters RX and TX made by Bert PE1RKI |
|
 |
 |

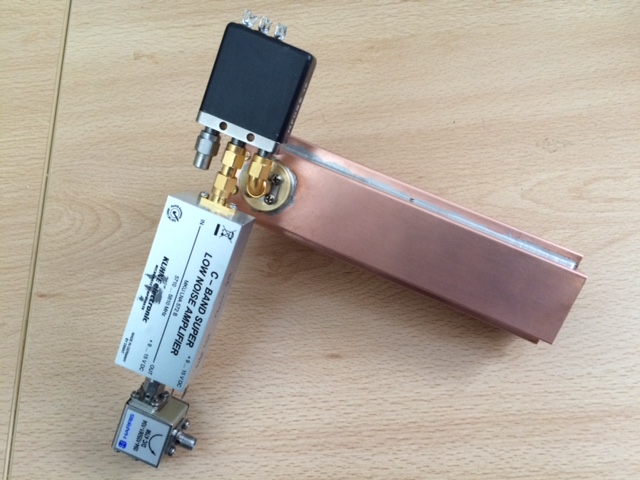

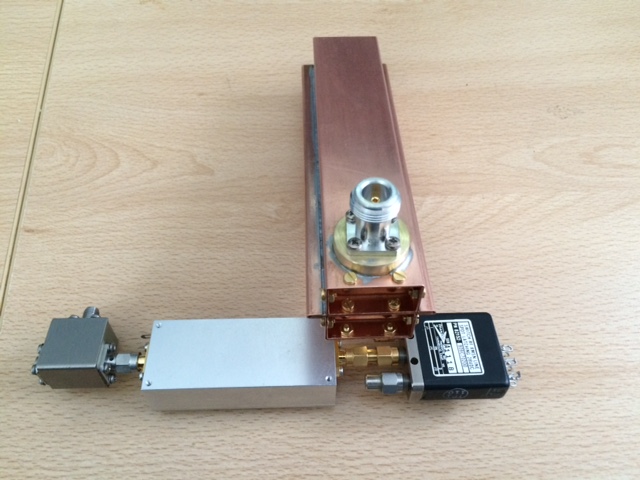

| TX port | RX port - VLNA and isolation relay -60dB for RX way during TX period |
